Yoshitake TSD-42 and TSD-42F are steam traps featuring a cast stainless steel (SCS2A) body and a SUS420J2 stainless steel disc. The bimetal ring solves air-binding problems and ensures smooth discharge of cold condensate or air at start-up. Designed for a maximum temperature of 425°C and working pressures up to 4.2 MPa, they can be applied in various heavy, light, and general industries. A built-in strainer eliminates the need for an upstream strainer. They can be installed vertically or horizontally as desired.

Features

• Stainless steel used for main parts, improving corrosion resistance.
• Bimetal solves air-binding problem.
• Insulation cover avoids frequent on-off operation.
• Plumbing is easy to perform because it can be installed vertically or horizontally.
• Built-in strainer reduces installation complexity.

Specifications

Model	TSD-42	TSD-42F
Nominal Size	10-25A	15-25A
Application	Steam condensate	Steam condensate
Working pressure	0.035-4.2 MPa	0.035-4.2 MPa*
Max allowable back pressure	50% or less of inlet pressure	50% or less of inlet pressure
Max temperature	425°C	425°C*
Body Material	Stainless steel (SCS2A)	Stainless steel (SCS2A)
Disc, Seat Material	Stainless steel (SUS420J2)	Stainless steel (SUS420J2)
Connection	JIS Rc, NPT, BSPT screwed	JIS 10K/20K/30K/40K RF, ANSI, PN flanged
*Depends on flange rating and standard.

Dimensions and Weights

TSD-42 (Screwed)

Nominal size	L	H	H1	A	Weight (kg)
10A	78	76	23	32	0.65
15A	78	76	23	32	0.6
20A	85	79	24	38	0.7
25A	95	86	27.5	45	0.9

TSD-42F (Flanged JIS 10/20K RF)

Nominal size	d	L	H	H1	Weight (kg)
15A	15	127	76	23	2.0
20A	20	131	79	24	2.4
25A	25	131	86	27.5	3.5

Discharge Capacity

To select the nominal size, secure a safety factor of 4 to 5. Consider the back pressure in selecting discharge capacity based on the operating differential pressure.

Installation

Precaution for installation

To discharge condensate to the atmosphere, lead the outlet to a place where there is no possibility of physical damage. Before connecting, remove foreign substances and scale from the piping.

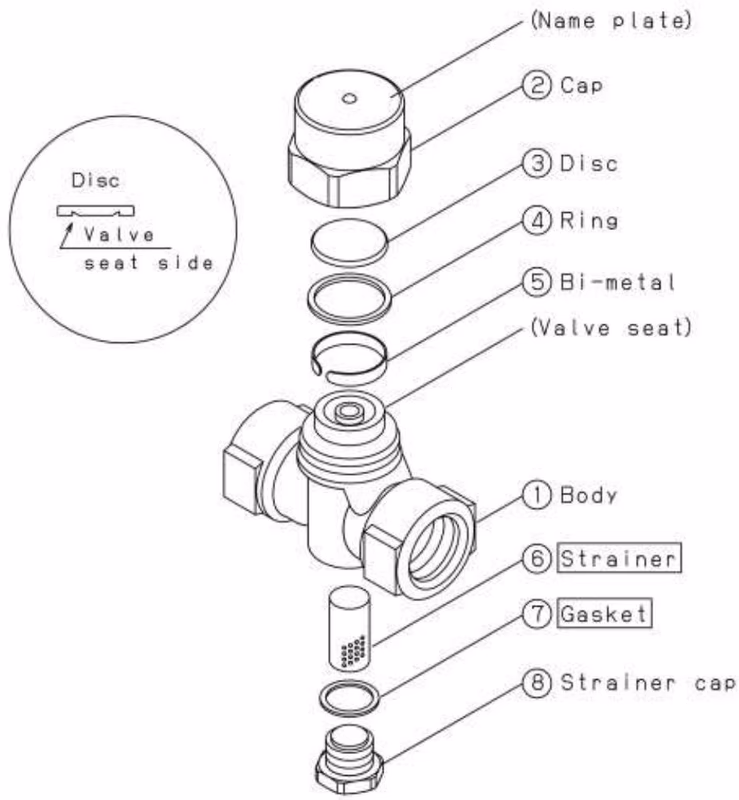

Structure and Maintenance

Disassembly and Reassembly

Do not disassemble unless necessary. Completely discharge internal pressure and cool down the product prior to maintenance.
