Armstrong 2000 Series stainless steel steam humidifiers are lightweight, flexibly configured, and suitable for a wide range of steam pressures with large humidification capacities. With a maximum steam pressure of 0.4 MPa and a maximum humidification capacity of 1.17 t/h, they are designed to meet demanding industrial and commercial requirements.

The primary wetted components of the 2000 Series are constructed from stainless steel. This makes the humidifier ideal not only for standard boiler steam applications but also for sensitive environments requiring pure steam generated from deionized, reverse osmosis (RO), or distilled water.

Key Features

• Corrosion Resistance: Because the core humidification components are made of stainless steel, the 2000 Series avoids problems caused by corrosion, such as the carryover of corrosion byproducts into the air stream.
• High-Efficiency Separation Chamber: Internal baffles force the steam flow to make two 180° turns. This conditions the steam, ensuring optimal deceleration and highly efficient steam-water separation.
• High-Efficiency Silencing: The drying chamber, which is surrounded by the separation chamber, is filled with stainless steel silencing media to absorb most of the noise generated during steam discharge.
• No Condensation from Thermal Radiation: Steam entering the jacketed dispersion tube from the drying chamber is completely surrounded by steam at supply pressure, preventing condensation caused by thermal radiation losses.
• Reliable Inverted Bucket Trap Drainage: The energy-efficient inverted bucket steam trap has only two moving parts, providing highly efficient and reliable drainage. Its structural design ensures it fails in the open position, preventing the humidification system from spraying water even if the trap malfunctions.
• Flexible Configuration: The control valve is installed between the steam strainer and the jacketed dispersion tube. Different types of electric, pneumatic, or manual control valves can be flexibly configured according to actual user needs, reducing procurement costs.

Standard Supply Scope

• Stainless steel humidifier body
• Electric proportional control valve / regulating valve
• Dispersion tube of required length
• Cast iron Y-strainer
• Cast iron inverted bucket steam trap

Options: Stainless steel inverted bucket trap and stainless steel Y-strainer are available as optional upgrades.

Humidifier Control Valve

The standard control/regulating valve features electric proportional regulation. If electric on/off control, pneumatic regulation, or manual regulation is required, please specify when ordering.

Materials of Construction

Component	Material
Steam Chamber	T-304 Stainless Steel
Dispersion Tube and Fittings	T-304 Stainless Steel
Control Valve / Regulating Valve	T-304 Stainless Steel
Strainer	Cast Iron or Stainless Steel
Inverted Bucket Trap	Cast Iron or Stainless Steel

Continuous Discharge Capacity

Model	Kv Value	0.02 MPa	0.04 MPa	0.06 MPa	0.08 MPa	0.1 MPa	0.14 MPa	0.17 MPa	0.2 MPa	0.24 MPa	0.28 MPa	0.3 MPa	0.34 MPa	0.38 MPa	0.4 MPa
2100	0.5	3.0	4.6	6.0	7.3	8.5	11.0	12.8	14.6	16.9	19.3	20.4	22.8	25.1	26.3
	1	6.1	9.2	11.9	14.5	17.1	21.9	25.5	29.1	33.8	38.5	40.9	45.5	50.2	52.5
	1.5	9.1	13.8	17.9	21.8	25.6	32.9	38.3	43.7	50.7	57.8	61.3	68.3	75.3	78.8
	1.9	11.5	17.5	22.7	27.6	30.4	41.7	48.5	55.3	64.3	73.2	77.6	86.5	95.3	99.8
2200	2.5	15.2	23.0	29.9	36.4	42.6	54.9	63.9	72.8	84.6	96.3	102.1	113.8	125.5	131.3
	3.5	21.3	32.2	41.8	50.9	59.7	76.8	89.4	101.9	118.4	134.8	143.0	159.3	175.6	183.8
	4.4	26.7	40.5	52.6	64.0	75.1	96.6	112.4	128.1	148.8	169.5	179.8	200.3	220.8	231.0
2300	5	30.4	46.0	59.7	72.7	85.3	109.7	127.7	145.6	169.1	192.6	204.3	227.6	250.9	262.5
	6	36.5	55.2	71.7	87.3	102.3	131.7	153.3	174.7	203.0	231.1	245.1	273.1	301.1	315.0
	8	48.6	73.5	95.6	116.3	136.5	175.6	204.4	232.9	270.6	308.2	326.9	364.2	401.4	420.0
	10	60.8	91.9	119.5	145.4	170.6	219.5	255.5	291.1	338.3	385.2	408.6	455.2	501.8	525.1

(Note: Capacities are in kg/h at the specified steam gauge pressures.)

Dimensions and Weights

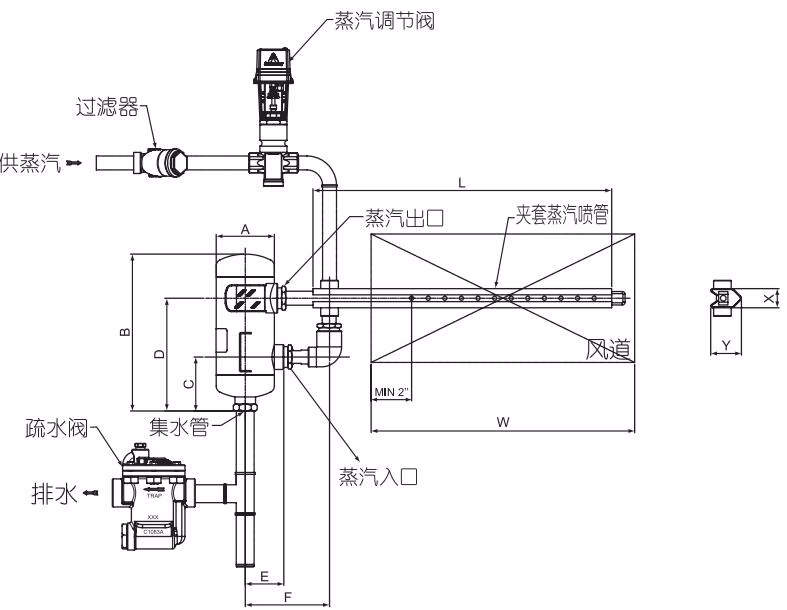

Overall Dimensions (mm)

Model	A	B	C	D	E	F	X	Y
2100	89	240	83	173	59	125	31	47
2200	114	283	95	195	72	220	45	65
2300	168	383	126	273	116	260	55	80

Connections and Weights

Model	Steam Inlet OD	Steam Outlet OD	Manifold	Trap	Strainer	Trap Model	Weight (kg)
2100	21.3 mm	21.3 mm	3/4" NPT	3/4" (DN20)	1/2" (DN15)	880 / 1811	5.5 / 3.4
2200	26.7 mm	26.7 mm	1" NPT	3/4" (DN20)	3/4" (DN20)	880 / 1811	7.1 / 5.3
2300	42 mm	33.4 mm	1-1/4" NPT	3/4" (DN20)	1-1/4" (DN32)	881 / 1822	15.9 / 11.7

INFO

Weight includes the steam trap, strainer, and fittings, but does not include the control valve and dispersion tube. All dimensions and weights are approximate; refer to certified drawings for exact dimensions.

Dispersion Tube Lengths and Duct Widths

Tube Model	Length (m)	Min Duct Width (m)	Max Duct Width (m)	2100 Wt (kg)	2200 Wt (kg)	2300 Wt (kg)
M-1	0.30	0.20	0.36	1.4	1.8	2.7
M-1.5	0.45	0.38	0.51	1.8	2.3	3.6
M-2	0.61	0.53	0.76	2.3	2.7	4.5
M-3	0.91	0.79	1.07	2.7	4.1	5.9
M-4	1.22	1.09	1.32	3.6	5.0	7.7
M-5	1.52	1.36	1.63	4.5	5.9	9.5
M-6	1.83	1.66	1.93	5.4	7.3	10.9
M-7	2.13	1.97	2.24	6.4	8.2	13.2
M-8	2.44	2.27	2.54	6.4	9.5	14.5
M-9	2.74	2.58	2.84	7.7	10.0	16.8
M-10	3.05	2.88	3.15	8.6	11.3	18.6
M-11	3.36	3.18	3.45	9.5	12.7	19.5
M-12	3.66	3.49	3.76	10.4	13.6	20.9

TIP

Insulated dispersion tubes are available upon request. Please contact the factory for details.

Ordering Information

To specify and order the correct humidifier:

1. Specify Control Type: Electric regulation, pneumatic regulation, or manual regulation.
2. Select Humidifier Model: Choose 2100, 2200, or 2300 based on the required capacity.
3. Select Dispersion Tube: Choose the tube model and quantity based on the duct dimensions (e.g., 2100 M-5, 2 units).
4. Electrical Parameters: For electric models, specify control signals and power supply voltage.
5. Accessories: Indicate if a humidistat, air pressure switch, high-limit humidistat, or other accessories are required.
