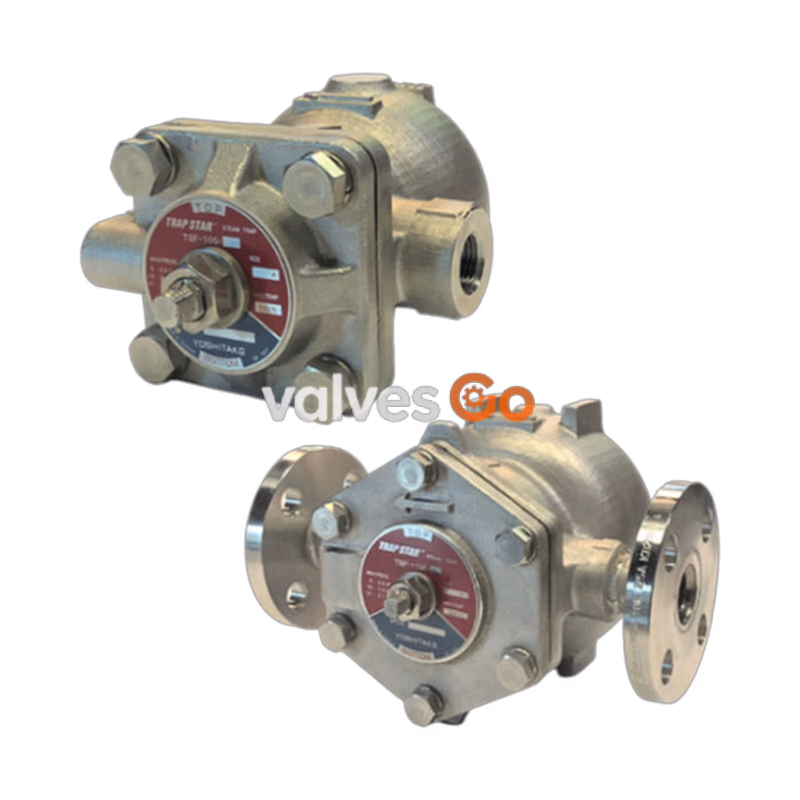

Yoshitake TSF-10SF is an all-stainless steel float steam trap designed to discharge condensate effectively without retention, realizing an energy-saving steam system with zero steam loss. It incorporates a thermostatic air vent that discharges air inside the piping and shortens warming-up time.
Features
- Energy Saving: Discharges condensate effectively without retention, preventing steam loss.
- Durability: All-stainless steel construction provides great durability and corrosion resistance.
- Quick Start-up: Incorporated thermostatic air vent discharges air inside the piping and shortens warming-up time.
- 360° Piping: By turning the cock, it is possible to meet various flow directions such as horizontal or vertical installation. Flow direction can be switched easily without disassembly.
- Easy Maintenance: Since the main parts are installed on the cover, it is possible to disassemble the cover with the body installed on the piping so the inspection and parts replacement can be conducted easily.
Specifications
| Model | TSF-10SF |
|---|---|
| Nominal Size | 15A, 20A, 25A |
| Application | Steam condensate |
| Working Pressure | TSF-10SF-5: 0.01-0.5 MPa TSF-10SF-10: 0.01-1.0 MPa TSF-10SF-21: 0.01-2.1 MPa |
| Maximum Temperature | 220°C |
| Body Material | Cast stainless steel |
| Float Material | Stainless steel |
| Valve & Valve Seat | Stainless steel |
| Connection | JIS 10K FF, JIS 20K RF, ASME Class 150/300, EN PN25/40 flanged |

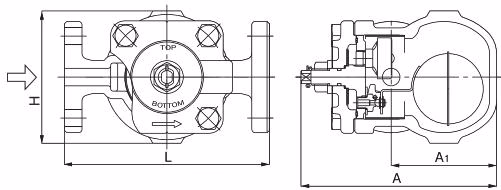

Dimensions and Weights
| Nominal Size | L (mm) | A (mm) | A1 (mm) | H (mm) | Weight (JIS 10K) (kg) | Weight (JIS 20K) (kg) |
|---|---|---|---|---|---|---|
| 15A | 195 | 173 | 88.5 | 110 | 4.8 | 5.0 |
| 20A | 215 | 173 | 88.5 | 110 | 5.2 | 5.4 |
| 25A | 235 | 173 | 88.5 | 110 | 6.2 | 6.6 |

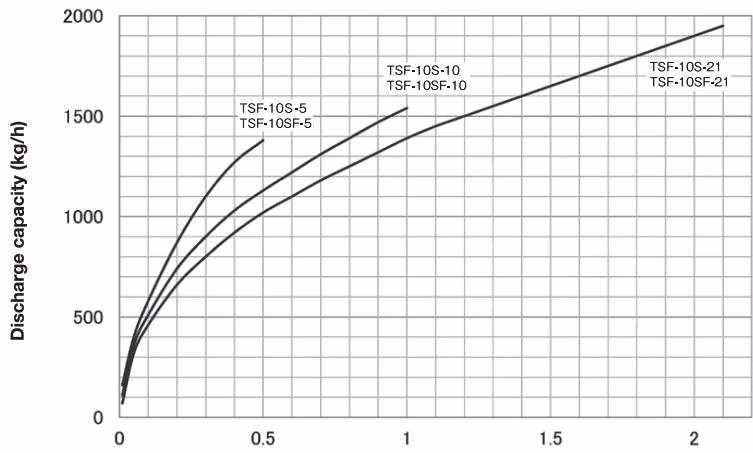

Maximum Continuous Discharge Capacity
The discharge capacity shown in the chart is the maximum value. In designing a system, select a steam trap with a sufficient safety factor (more than two times the regular level).
Installation and Maintenance
Installation Posture
Allowable tilt from the horizontal or vertical line is within ±10°. Wrong posture hampers proper operation. Adjust the direction of the nameplate in a no-pressure condition after installation.
Maintenance Space
Secure enough space for maintenance (such as cleaning of the strainer), inspections, and repair. The system must stop operation during inspection and maintenance if a bypass line is not installed.

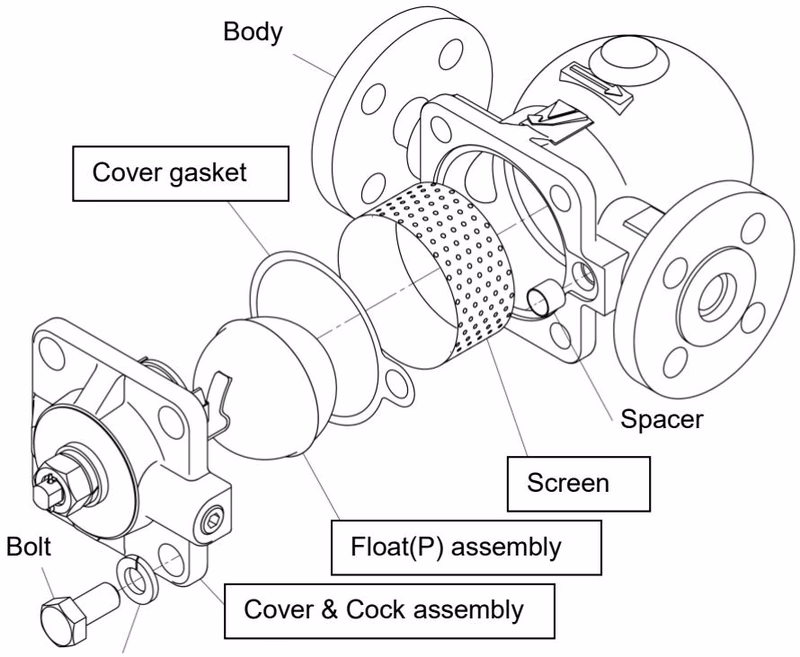

Exploded Drawing
Yoshitake Steam Traps / Float Steam Traps
TF and TSF series float steam traps for continuous condensate drainage in steam systems.
