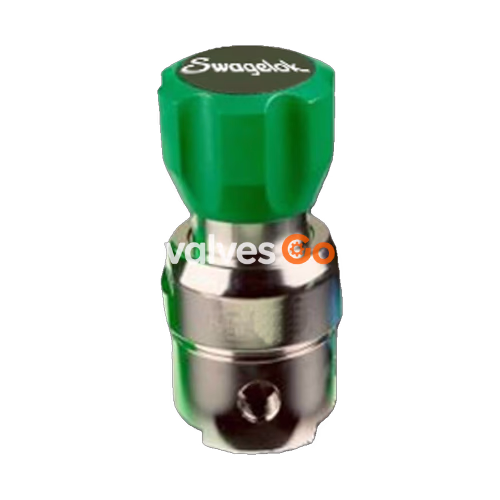

Swagelok KPR1GJF412A20000 single-stage pressure reducing regulator. Achieve reliable pressure reduction while minimizing droop and maintaining a constant downstream pressure with Swagelok pressure reducing regulators.
Specifications
| Specification | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Flow Coefficient | 0.06 Cv |
| Handle | Green Knob Handle |
| Maximum Inlet Pressure | 500 psig (34.4 bar) |
| Maximum Temperature | 176°F (80°C) |
| Port Configuration | F |
| Ports | 1/4 in. Female NPT |
| Pressure Control Range | 0 to 250 psig (17.2 bar) |
| Sensing Mechanism | X750 Diaphragm |
| eClass (4.1) | 37011108 |
| eClass (5.1.4) | 37011108 |
| eClass (6.0) | 37011108 |
| eClass (6.1) | 37011108 |
| eClass (10.1) | 37011108 |
| UNSPSC (4.03) | 41112404 |
| UNSPSC (10.0) | 40142202 |
| UNSPSC (11.0501) | 40142202 |
| UNSPSC (13.0601) | 40142202 |
| UNSPSC (15.1) | 40142202 |
| UNSPSC (17.1001) | 40142202 |
