Product Overview

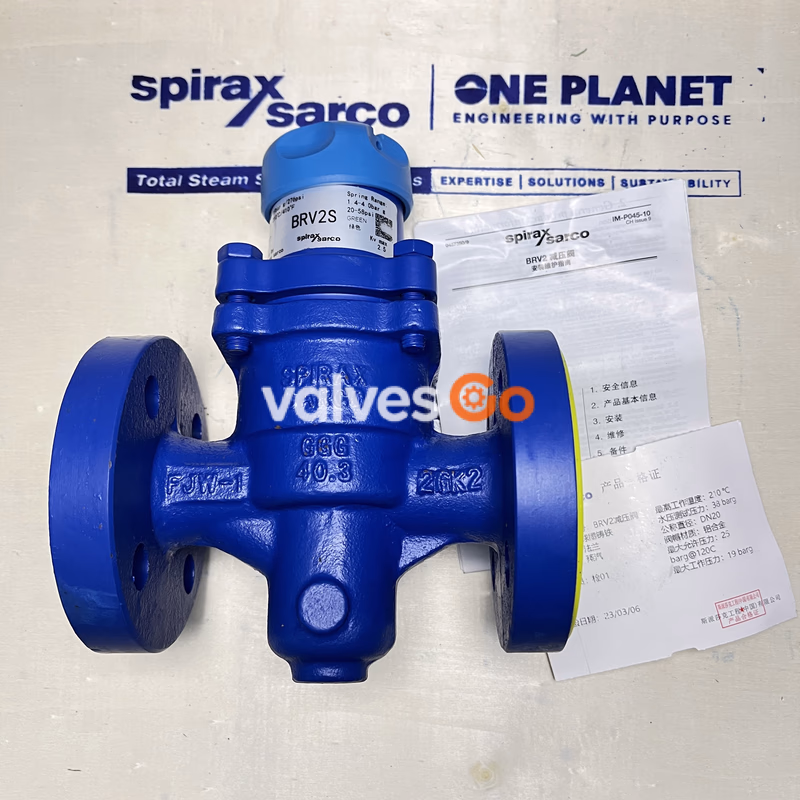

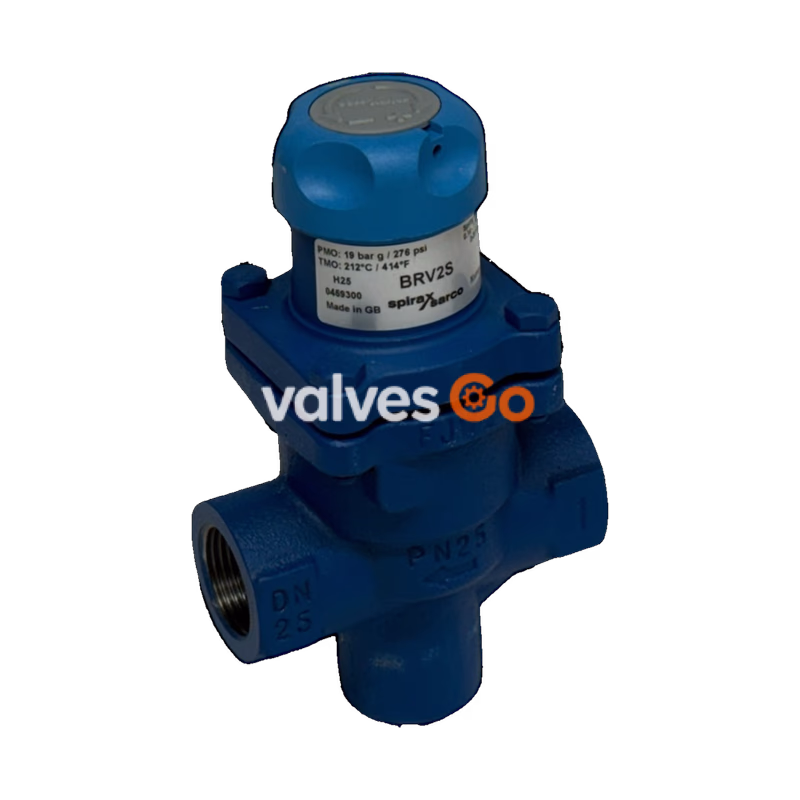

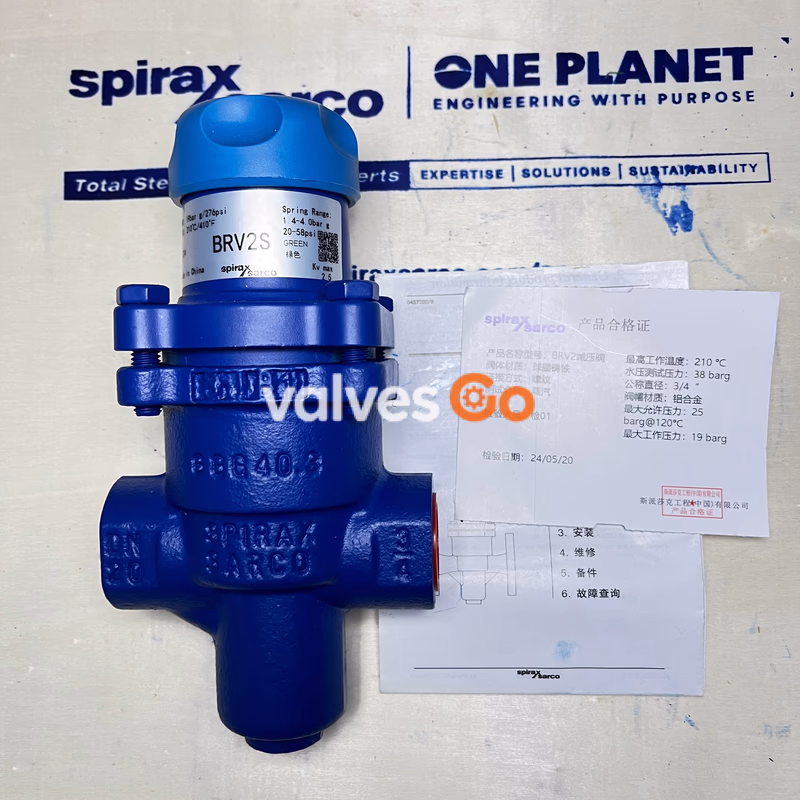

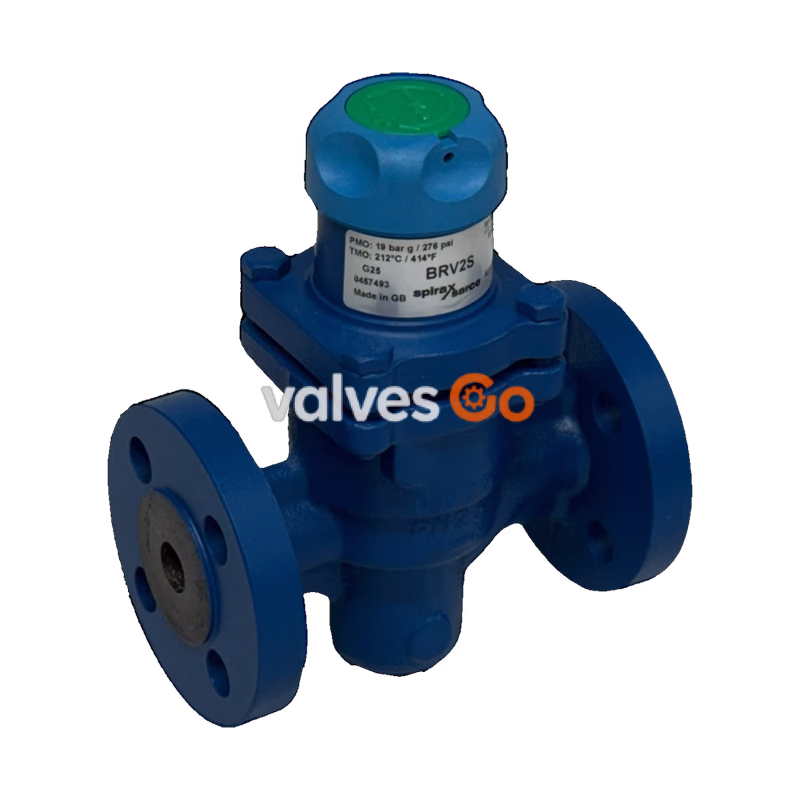

Spirax Sarco BRV2S and BRV2B series are direct acting pressure reducing valves, specifically designed for steam, compressed air, and other gas media, featuring ductile iron bodies with robust and durable construction, suitable for various industrial applications. The products provide both flange and threaded connection options to meet different pipeline installation requirements, while offering multiple downstream set pressure ranges, distinguished by color-coded plates for easy identification and selection.
The products fully comply with the European Pressure Equipment Directive 97/23/EC, can be equipped with CE marking as required, and are supplied with manufacturer's typical test certificate (special certificates and test requirements must be specified in the order). With precise pressure control performance and stable operation, they are widely used in various industrial gas transmission systems.
Pressure Range Description
Downstream set pressure ranges are distinguished by color-coded plates. When selecting, if pressure ranges overlap, it is recommended to use the lower range spring for better control:
| Plate Color | Downstream Control Pressure Range |
|---|---|
| Gray | 0.14 - 1.7 bar g |
| Green | 1.40 - 4.0 bar g |
| Orange | 3.50 - 8.6 bar g |
Dimensions and Weight
Dimension Parameters (Unit: mm)
| Port Size | Threaded/Flange Specification | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| DN15 | ½" (Threaded) / DN15 (Flange) | 83 | 150 | 60 | 130 | 25 | 97 |
| DN20 | ¾" (Threaded) / DN20 (Flange) | 96 | 150 | 60 | 130 | 25 | 107 |
| DN25 | 1" (Threaded) / DN25 (Flange) | 108 | 160 | 60 | 130 | 25 | 117 |
Weight Parameters (Unit: kg)
| Port Size | Threaded Connection Weight | Flange Connection Weight |
|---|---|---|
| DN15 - ½" | 1.60 | 3.90 |
| DN20 - ¾" | 1.70 | 4.25 |
| DN25 - 1" | 1.95 | 4.65 |
Component Material Details
| No. | Component Name | Material Specification | Standard/Notes |
|---|---|---|---|
| 1 | Spring Chamber | Aluminum-Epoxy Coating | LM24 |
| 2 | Adjusting Handwheel | Polypropylene | - |
| 3 | Upper Spring Plate | Cast Iron | DIN 1691 GG 20 |
| 4 | Pressure Regulating Spring | Silicon Chrome Spring Steel | BS 2803 685 A55 (Range 2) |
| 5 | Bellows Assembly | Stainless Steel (316T/316L) / Phosphor Bronze | Corresponding to different models |
| 6 | Bellows Assembly Gasket | Stainless Steel Reinforced Laminated Graphite | - |
| 7 | Spring Chamber Bolt (M8×25mm) | Galvanized Steel | BS 3692 Gr. 8.8 |
| 8 | Body | Ductile Iron | DIN 1693 GGG 40.3 |
| 9 | Tapered Washer | Stainless Steel | ASTM A276 316L |
| 10 | Push Rod | Stainless Steel | ASTM A276 316L |
| 11 | Valve Seat | Stainless Steel | BS 970 431 S29 |
| 12 | Valve Seat Washer | Stainless Steel | BS 1449 316 S11 |
| 13 | Valve Plug | Stainless Steel | AISI 420 |
| 14 | Valve Plug Return Spring | Stainless Steel | BS 20056 316 S42 |
| 15 | Filter | Stainless Steel | BS 1449 316 SH |
| 16 | Plug | Stainless Steel | BS 970 431 S29 |
| 17 | Compression Fitting Assembly | Brass | - |
| 18 | Spring Range Color Plate | Polypropylene | - |
| 19 | Baffle | Stainless Steel | 316L |
| 20 | Pin | Copper-Plated Low Carbon Steel | - |
Flow Parameters
Full Open Flow (for Safety Valve Sizing)
| Port Size | DN15 | DN20 | DN25 |
|---|---|---|---|
| Kvs Value | 1.5 | 2.5 | 3.0 |
Flow Conversion Formulas
- Cv (US) = Kv × 1.156
- Cv (UK) = Kv × 0.963
Sizing Chart Usage Instructions
- Curves numbered 2, 3, 4, 5, etc. in the chart represent upstream pressure, and the vertical line on the left represents downstream pressure.
- Example: If the pressure reducing valve flow requirement is 120kg/h, reducing from 8bar g to 6bar g, follow the downstream pressure 6bar g horizontally to the right, intersect with the upstream pressure 8bar g curve, then vertically downward to confirm that DN15 (½") BRV2 series products meet the requirement.
Installation and Safety Information
Installation Instructions
- Install the pressure reducing valve on a horizontal pipeline according to the flow direction arrow on the valve body.
- For BRV2SP/BRV2BP models using external sensing tube, remove the plug (16), install the 6mm O/D compression fitting (17), and the other end of the sensing tube should be installed on the pipeline at least 1m downstream from the valve.
- For detailed installation and maintenance steps, please refer to the Installation and Maintenance Guide (IM-P045-10) provided with the product.
Recommended Tightening Torque
| No. | Component Name | Specification | Tightening Torque (N·m) |
|---|---|---|---|
| 7 | Hex Bolt | M8×25 | 18 - 24 |
| 11 | Valve Seat | 32 A/F | 108 - 132 |
Spare Parts Information
Available Spare Parts List (Common to All Port Sizes)
| Spare Part Name | Related Parameters | Corresponding Part No. |
|---|---|---|
| Pressure Regulating Spring | Gray (0.14-1.7 bar g) | 4, 18 |
| Pressure Regulating Spring | Green (1.40-4.0 bar g) | 4, 18 |
| Pressure Regulating Spring | Orange (3.50-8.6 bar g) | 4, 18 |
| Bellows Assembly | Stainless Steel / Phosphor Bronze | 5, 6 |
| Spring Chamber Bolt | 4 pieces/set | 7 |
| Valve Plug and Seat Assembly | - | 6, 11, 12, 19 |
| Gasket Set | - | 6, 12 |
Ordering Instructions
- Product ordering example: 1-DN15 BRV2S pressure reducing valve, ductile iron body, flange connection EN1092 PN25, stainless steel bellows, orange spring (3.5-8.6 bar g).
- When ordering spare parts, specify the pressure reducing valve port size, model, pressure range, and spare part name. Example: Regulating spring for DN15 BRV2 pressure reducing valve, pressure range 3.5-8.6bar g (orange).
