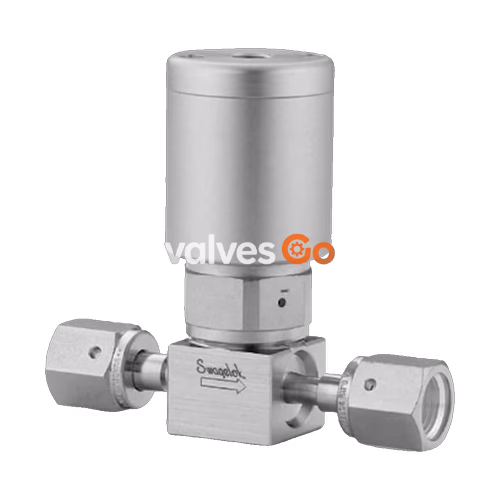

Swagelok 6LVV-DPFR4-P1-C is a 316L VIM-VAR ultrahigh-purity (UHP) diaphragm-sealed valve designed for high-purity system needs. This straight pattern valve features 1/4 in. face seal (metal gasket) female VCR fittings, a normally closed (NC) actuator, and undergoes special SC-11 cleaning and packaging.
Specifications
| Specification | Value |
|---|---|
| Body Material | 316L VIM-VAR |
| Cleaning Process | Special Cleaning and Packaging (SC-11) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Face Seal (Metal Gasket) Female VCR |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Face Seal (Metal Gasket) Female VCR |
| CV Maximum | 0.27 |
| Maximum Temperature | 150°F (65°C) |
| Minimum Temperature | -10°F (-23°C) |
| eClass (4.1) | 37010206 |
| eClass (5.1.4) | 37011800 |
| eClass (6.0) | 37011801 |
| eClass (6.1) | 37011801 |
| eClass (10.1) | 37011801 |
| UNSPSC (4.03) | 40141600 |
| UNSPSC (10.0) | 40141621 |
| UNSPSC (11.0501) | 40141621 |
| UNSPSC (13.0601) | 40141621 |
| UNSPSC (15.1) | 40141621 |
| UNSPSC (17.1001) | 40183102 |
WARNING
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
