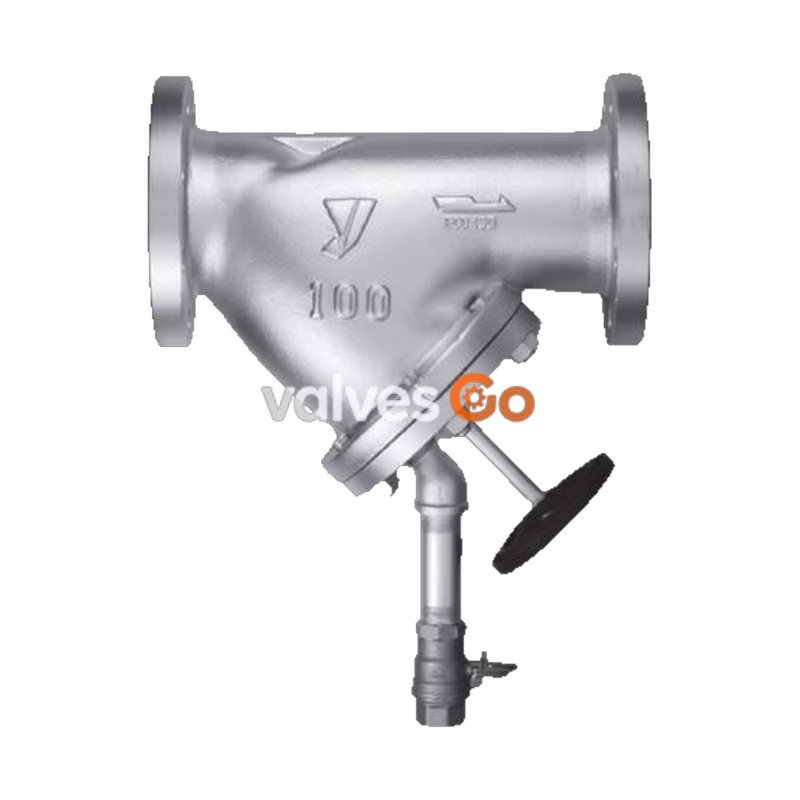

Yoshitake SY-40R series (SY-40R-A and SY-40R-B) strainers are designed for water and oil applications. Constructed with a ductile cast iron body and a stainless steel screen, these strainers support a maximum working pressure of 1.0MPa and a maximum temperature of 90°C. The series offers specific models for different piping orientations to ensure optimal performance and maintenance access.

Recommendation

The SY-40R series is highly recommended for labor-saving or man-hour-saving facilities that require frequent screen cleaning.

Features

• SY-40R-A: Designed specifically for horizontal piping.
• SY-40R-B: Designed specifically for vertical (upper→bottom) piping.

Specifications

Specification	SY-40R-A	SY-40R-B
Installation direction	Horizontality	Verticality
Application fluid	Water, Oil	Water, Oil
Nominal size	80-150A	80-150A
Maximum working pressure	1.0MPa	1.0MPa
Maximum temperature	90°C	90°C
Material (Body)	Ductile cast iron	Ductile cast iron
Material (Screen)	Stainless steel	Stainless steel
Connection	JIS 10K FF	JIS 10K FF
Screen	Punching equivalent to 20, 40, or 60 mesh	Punching equivalent to 20, 40, or 60 mesh

Installation Note

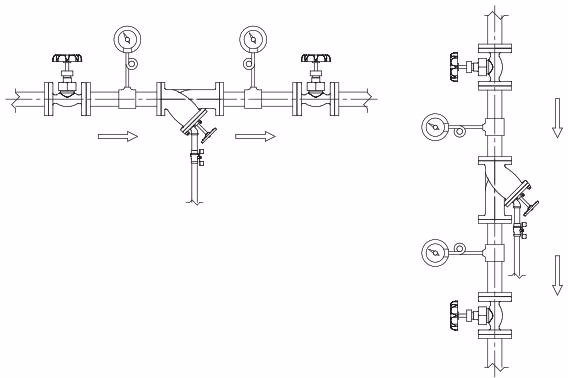

Please reference the installation direction figures below to ensure proper orientation for your specific model (SY-40R-A or SY-40R-B).

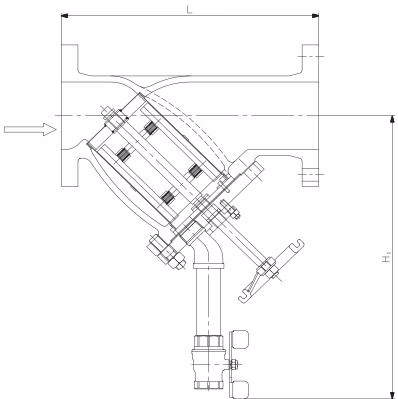

Dimensions and Weights

Nominal size	L (mm)	$H_1$ (mm)	$H_2$ (mm)	No.24 Ball valve	Weights (kg)
80A	330	365	85	Rc 3/4	22
100A	370	420	125	Rc 1	35
125A	415	470	130	Rc 1 1/4	49
150A	495	510	105	Rc 1 1/4	72

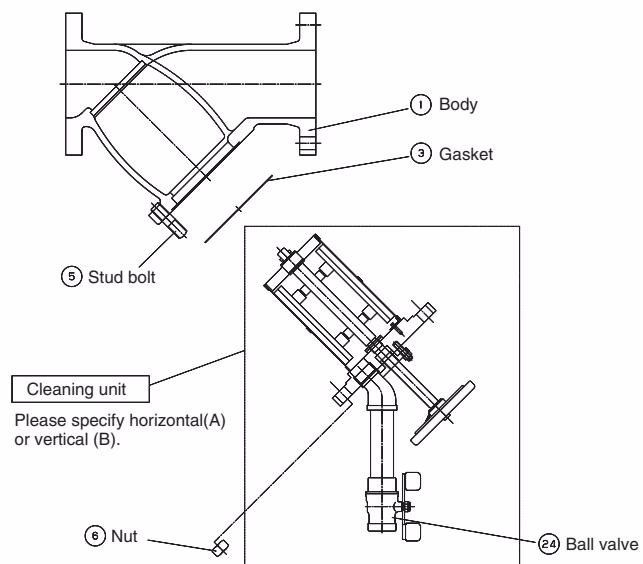

Disassembly
