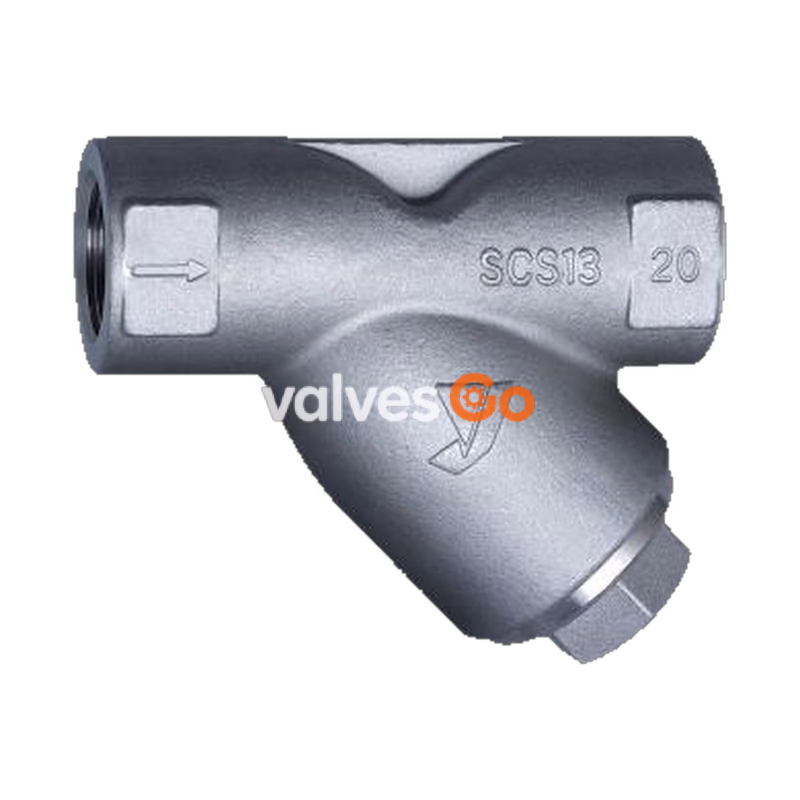

Yoshitake SY-37 is a high-performance Y-type strainer constructed from cast stainless steel, designed specifically for applications requiring fine filtration. It is equipped with a fine mesh screen (120 to 200 mesh) as standard, making it ideal for the food, chemical, and petroleum industries where rust prevention and clean media are critical. The design focuses on maximizing the filtration area to maintain high flow rates even as the screen begins to capture debris.

Features

1. Corrosion Resistance: The cast stainless steel body ensures rust-less performance across a wide variety of fluids, including food products and aggressive chemicals.
2. High Flow Rate: Engineered as a high-flow marine type, the internal geometry provides the largest possible filtration area to minimize pressure drop caused by clogging.
3. Precision Filtration: While the related SY-17 model uses a standard 80 mesh, the SY-37 provides finer filtration up to 200 mesh.

Specifications

Item	Description
Model	SY-37 (Strainer with fine mesh)
Applicable Fluid	Steam, Air, Cold/Hot Water, Oil, Non-hazardous fluids
Maximum Pressure	2.0 MPa
Standard Max Temperature	100°C (with PTFE Gasket)
Body Material	Cast Stainless Steel
Screen Material	Stainless Steel
Mesh Density	120 to 200 mesh
Connection	JIS Rc screwed

Temperature Limits

The standard PTFE gasket is rated for temperatures up to 100°C. High-temperature versions are available by changing the gasket material:

• 15A–40A: Max temperature 250°C
• 50A: Max temperature 175°C

Dimensions and Weights

Nominal Size	d (Rc)	L (mm)	H1 (mm)	ds (mm)	ls (mm)	Weight (kg)
15A	1/2	85	55	18	35	0.4
20A	3/4	100	69	23	50	0.7
25A	1	115	83	30	60	1.1
32A	1-1/4	135	92	38	70	1.6
40A	1-1/2	150	102	43	75	2.0
50A	2	180	117	54	90	3.6

Pressure Loss Performance

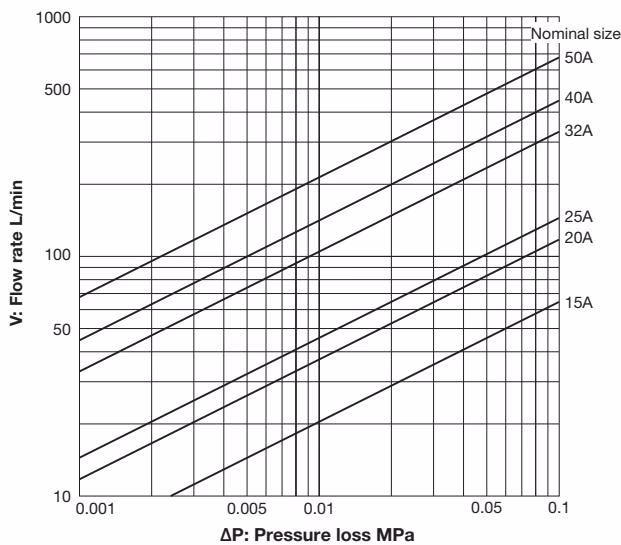

The following chart indicates the pressure loss for the SY-37 model using a 120 mesh screen with water. For mesh counts between 120 and 200, or for fluids other than water, please consult the technical manual for correction factors.

Selection Note

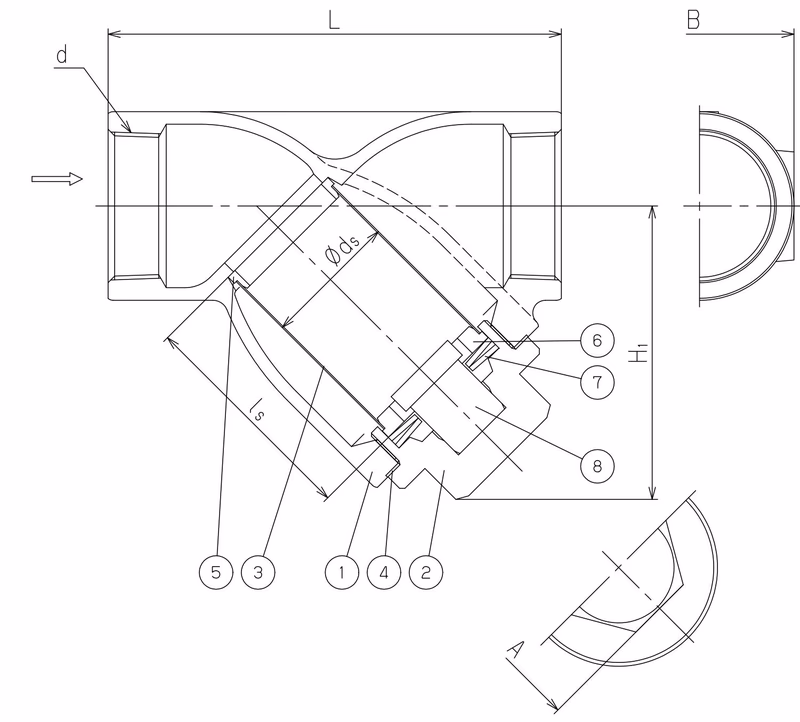

Size 15A to 40A units are assembled without the No. 9 washer shown in the structure diagram. This component is specific to the 50A size.
