Burkert Type 2920 manually operated 2/2-way angle seat valve. Features high flow rates, a robust plastic actuator, and a stainless steel body for pressures up to 25 bar.

Burkert Type 2920 angle seat valve consists of a manual actuator and a 2-way body made of high-quality stainless steel. With a flow-optimised valve body, the manually operated valve offers diverse usage options to shut off both neutral and aggressive gaseous and liquid media. The tried-and-tested self-adjusting packing gland guarantees optimal tightness and therefore enables low-maintenance operation, even at high switching cycles. Depending on the application, the soft PTFE or PEEK seal ensures a reliable valve seat seal, even under challenging operating conditions.
The actuator is made of high-quality plastic and is suitable for use in demanding environments. It possesses a visual position indicator and can be optionally equipped with stroke limitation and locking.

| Product properties | |
|---|---|
| Design | Angle seat valve on/off |
| Nominal diameter | DN 10...DN 80, NPS 3/8...NPS 3 |
| Flow direction | Flow to open (below seat) |
| Performance data | |
|---|---|
| Operating pressure | 0 bar(g)...25 bar(g) |
| Nominal pressure | PN 25 (DIN EN 1333), Class 150 (DIN EN 1759) |
| Seat leakage | Leakage rate A (DIN EN 12266-1), seat seal PTFE and PEEK, test medium air |
| Kv value | 1.6...140 m³/h |
| Medium data | |
|---|---|
| Operating medium | Steam, water, neutral gases, alcohols, oils, fuels, hydraulic fluids, salt solutions, alkalis, organic solvents |
| Medium temperature | -40 °C...+230 °C |
| Viscosity | Max. 600 mm²/s |
| Environment and installation | |
|---|---|
| Ambient temperature | -10 °C...+60 °C |
| Installation position | As required, preferably with actuator upright |

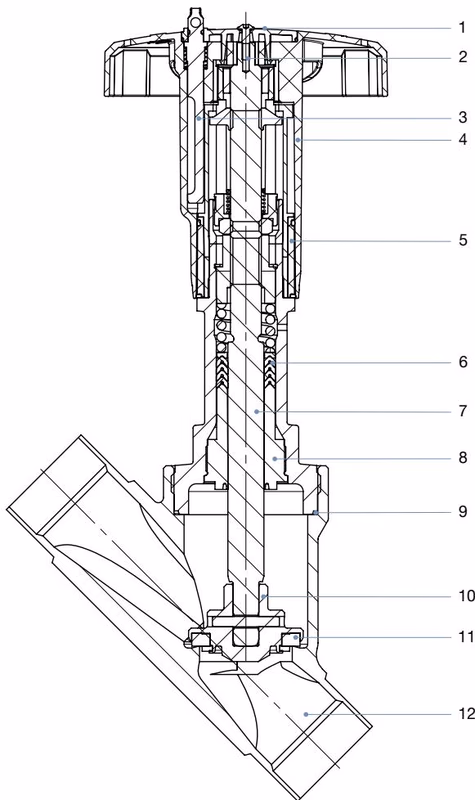

| No. | Element | Material |
|---|---|---|
| 1 | Cover | Polyamide (PA) |
| 2 | Screw | Stainless steel 1.4301 |
| 3 | Lock pin | Stainless steel 1.4305 |
| 4 | Handwheel | Polyphenylene sulfide (PPS) |
| 5 | Optical position indicator with scale | Polyamide (PA) |
| 6 | Packing gland | PTFE V-rings (filled), with spring compensation |
| 7 | Spindle | Stainless steel 1.4401 (316)/1.4404 (316L) |
| 8 | Spindle guide | DN 15...DN 50: PEEK DN 65...DN 80: Stainless steel 1.4401 (316)/1.4404 (316L) |
| 9 | Body seal | Graphite |
| 10 | Swivel plate | Stainless steel 1.4401 (316)/1.4404 (316L) |
| 11 | Seat seal (optional) | PTFE or PEEK |
| 12 | Valve body | Stainless steel 316L/CF3M |

(Dimensions in mm, unless otherwise stated)

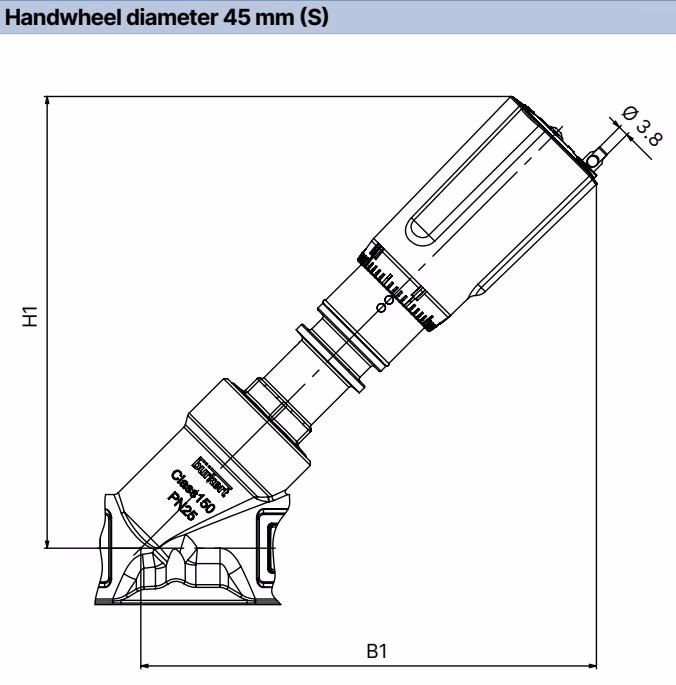

| Nominal connection size (pipe) DN | NPS | Handwheel diameter ∅ [mm] | B1 | H1 |
|---|---|---|---|---|
| 15 | 1/2 | 45 (S) | 148 | 148 |
| 20 | 3/4 | 45 (S) | 154 | 154 |
| 25 | 1 | 45 (S) | 163 | 163 |
| 32 | 1 1/4 | 45 (S) | 171 | 171 |
| 40 | 1 1/2 | 45 (S), 110 (M) | 224 | 224 |
| 50 | 2 | 110 (M) | 241 | 241 |
| 65 | 2 1/2 | 160 (L) | 290 | 290 |
| 80 | 3 | 160 (L) | 308 | 310 |

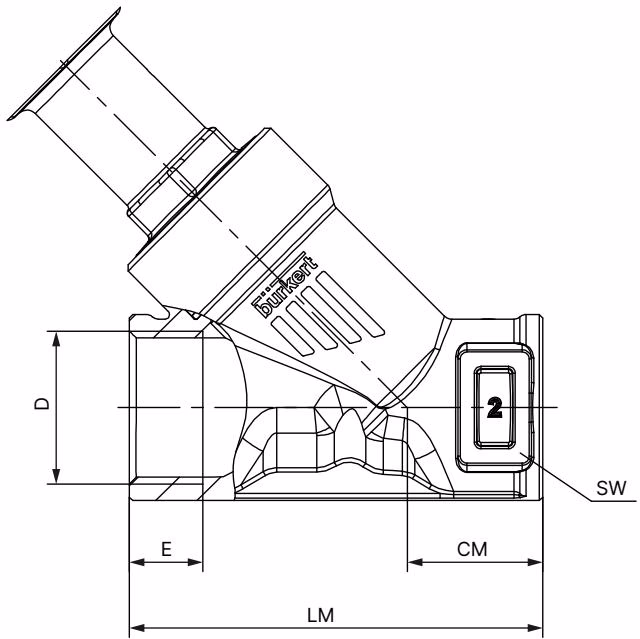

| Nominal diameter (pipe) DN | NPS | D [G] | E [NPT] | E [Rc] | CM | LM | SW |
|---|---|---|---|---|---|---|---|
| 15 | 1/2 | 14 | 13.7 | 13.2 | 24 | 65 | 27 |
| 20 | 3/4 | 16 | 14.0 | 14.5 | 27 | 75 | 34 |
| 25 | 1 | 18 | 16.8 | 16.8 | 29.5 | 90 | 41 |
| 32 | 1 1/4 | 16 | 17.3 | 19.1 | 36 | 110 | 50 |
| 40 | 1 1/2 | 18 | 17.3 | 19.1 | 35 | 120 | 55 |
| 50 | 2 | 24 | 17.6 | 23.4 | 45 | 150 | 70 |
| 65 | 2 1/2 | 26 | 23.7 | 26.7 | 57 | 185 | 85 |
| 80 | 3 | 28 | - | - | 71 | 220 | 100 |


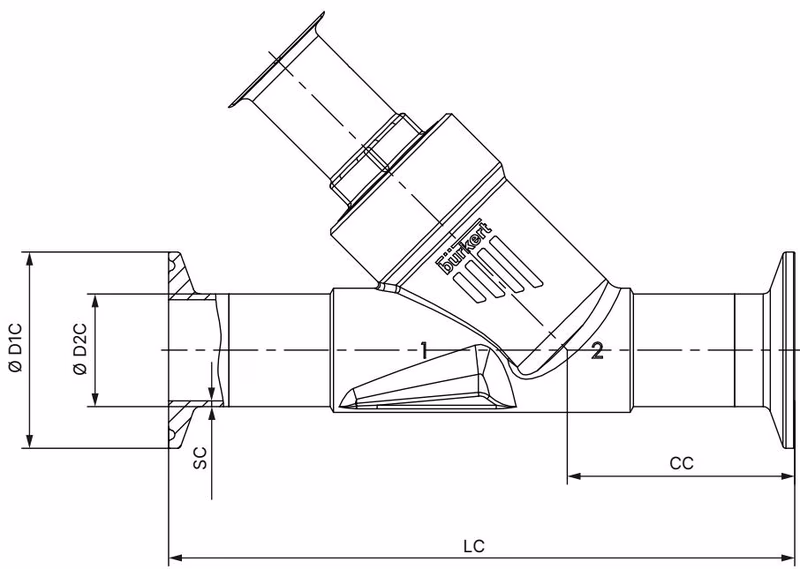

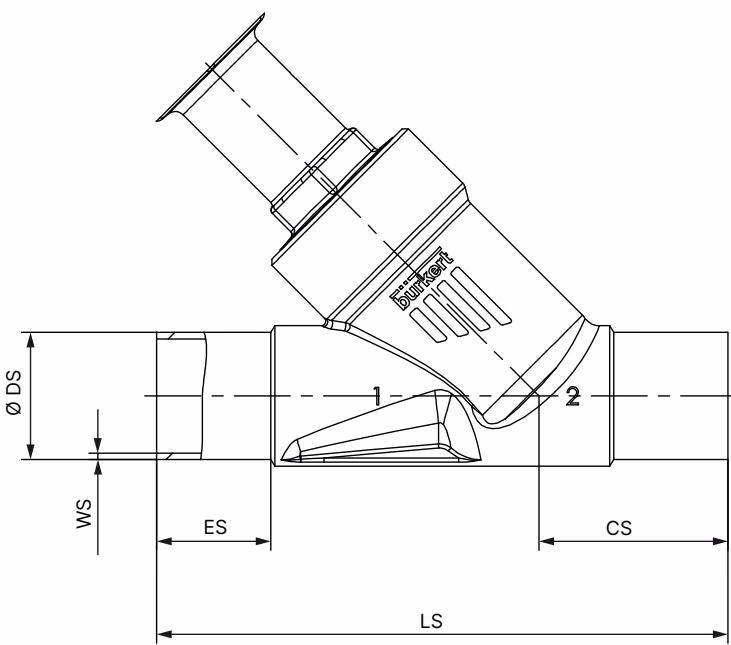

In addition to the maximum operating pressures, the operating range of Burkert process valves is limited by the nominal pressure according to the relevant standard.
Risk of injury due to high pressure and escaping medium
Switch off the pressure before working on the device or system. Vent or drain the lines.

When turning the handwheel anticlockwise, the reproducible stroke scale becomes visible between the position indicator and the handwheel. The scale on the handwheel determines the rotation position of the handwheel (50 positions).

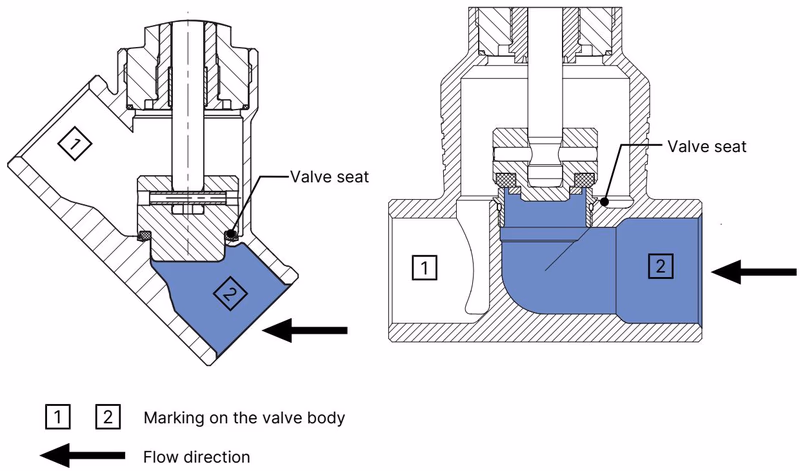

The valve seat is always closed against the medium flow. The flow direction should therefore be set such that the valve reaches the flow beneath the valve seat.

Setting the minimum and maximum stroke limit is possible as an option. An adjusting sleeve is used for this purpose.

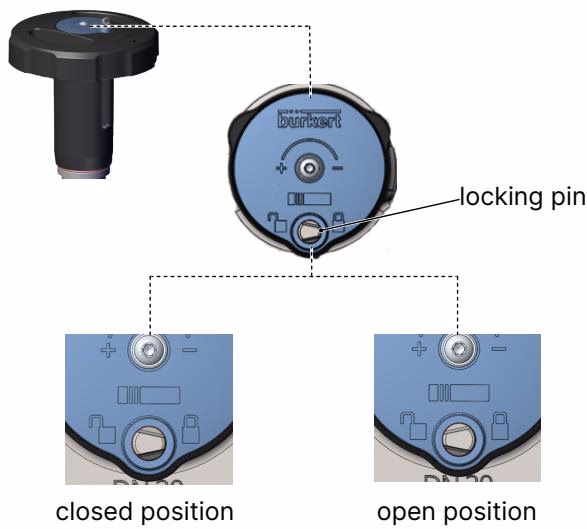

It is also an option to lock the handwheel to prevent unintentional or unauthorised operation of the valve. The locking pin has a bore (Ø 3.8) and can be secured against unauthorised use with a padlock.

Push locking pin down and rotate by 180° (either clockwise or anticlockwise). Insert padlock through the bore in the locking pin and secure.
