Process scope

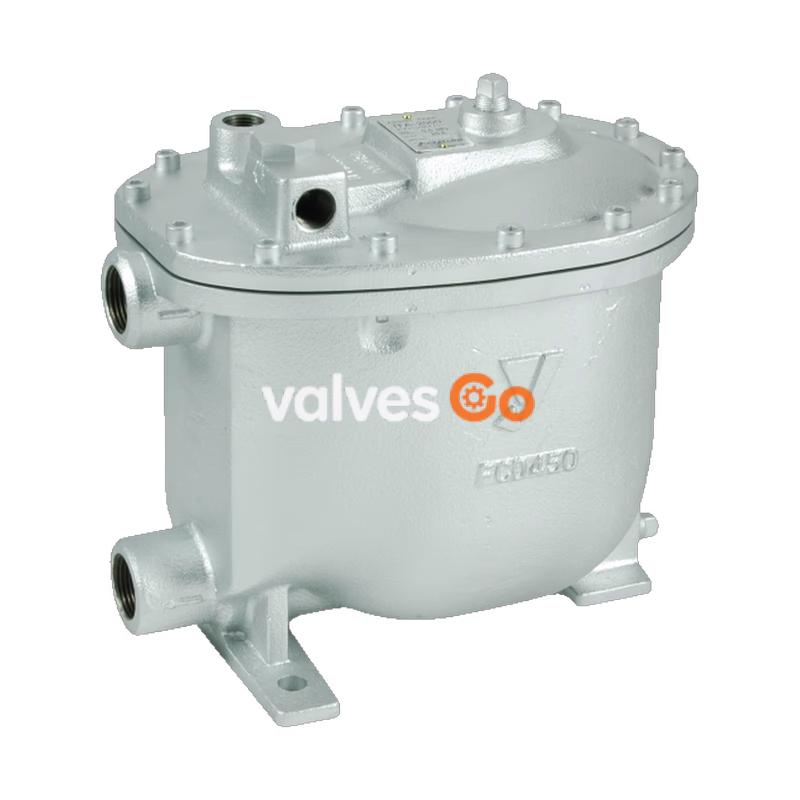

Yoshitake pumping traps recover condensate where gravity drainage is unavailable or insufficient. They use steam or compressed air as motive pressure, so selection depends on the available motive source, condensate load, receiver arrangement, and discharge back pressure rather than nominal pipe size alone.

Project-specific checks

1. Provide condensate load by operating condition, including start-up and peak load.
2. State available motive pressure, discharge pressure, receiver pressure, and the net differential across the pump trap.
3. Confirm condensate temperature, flash-steam behavior, pipe routing, check valves, venting, and receiver volume.
4. Review installation elevation and whether gravity drainage is truly unavailable at all operating points.

Final verification

This guide groups local Yoshitake catalogue pages for preliminary engineering review. The model-specific Yoshitake documentation, sizing calculation, materials confirmation, and applicable site requirements control the final order and installation decision.
