The Yoshitake VDF-100 is a specialized flow measurement series that includes Venturi Flow Meters designed for horizontal pipelines and Orifice Flow Meters designed for vertical pipelines. These meters accommodate line sizes ranging from 50A to 200A with JIS 10K flanged connections and feature wetted parts primarily constructed from stainless steel (SUS304 and SCS13).

Parts and Materials

Item No.	Name	Material	Required Qty.	Remark
1	Venturi / Orifice	SUS304	1
2	Differential Pressure Gauge	Stainless (Wetted parts)	1
3	3-Way Valve	Stainless	1	UT-2150
4	Adapter	Stainless	2	Rc 1/2
5	Joint	Stainless	2	φ6 × R 1/2
6	Pipe	Stainless	2	φ6 × φ4
7	Half Union Joint	Stainless	2	φ6 × R 1/4
8	Tee	SCS13	2	Rc 1/4
9	Plug	SUS304	2	R 1/4
10	Nipple	SUS304	2	R 1/4
11	Lod (Fixed Shaft)	SUS304	2	M10
12	Eyebolt	SUS304	1	150A, 200A: M12
13	Plate	SUS304	1 set

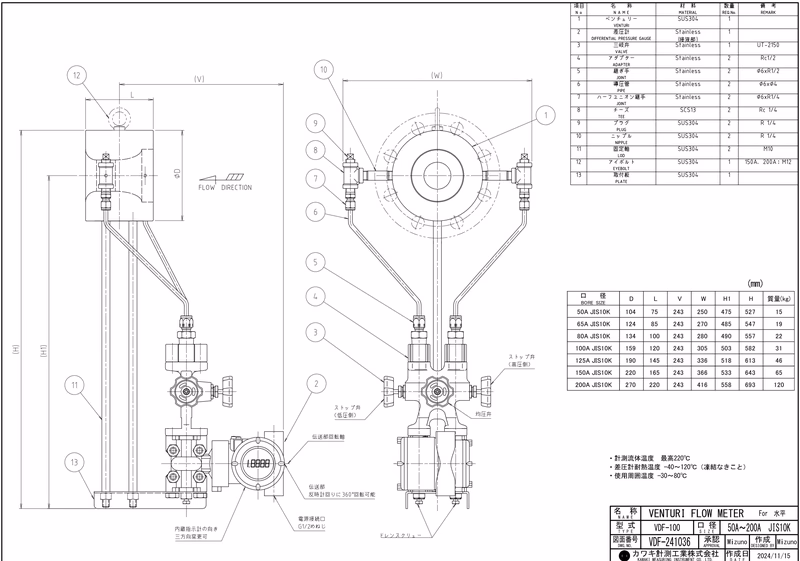

Venturi Flow Meter (For Horizontal Installation)

Bore Size	D	L	V	W	H1	H	Mass (kg)
50A JIS 10K	104	75	243	250	475	527	15
65A JIS 10K	124	85	243	270	485	547	19
80A JIS 10K	134	100	243	280	490	557	22
100A JIS 10K	159	120	243	305	503	582	31
125A JIS 10K	190	145	243	336	518	613	46
150A JIS 10K	220	165	243	366	533	643	65
200A JIS 10K	270	220	243	416	558	693	120

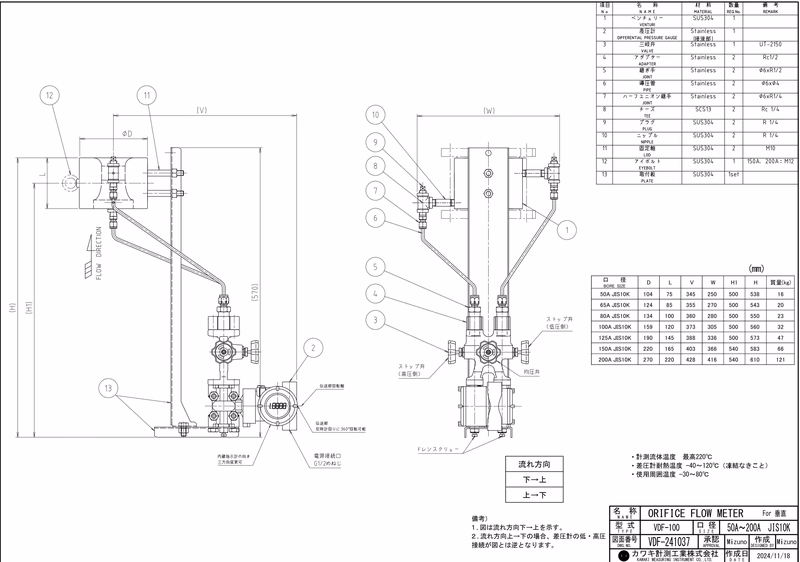

Orifice Flow Meter (For Vertical Installation)

Bore Size	D	L	V	W	H1	H	Mass (kg)
50A JIS 10K	104	75	345	250	500	538	16
65A JIS 10K	124	85	355	270	500	543	20
80A JIS 10K	134	100	360	280	500	550	23
100A JIS 10K	159	120	373	305	500	560	32
125A JIS 10K	190	145	388	336	500	573	47
150A JIS 10K	220	165	403	366	540	583	66
200A JIS 10K	270	220	428	416	540	610	121
