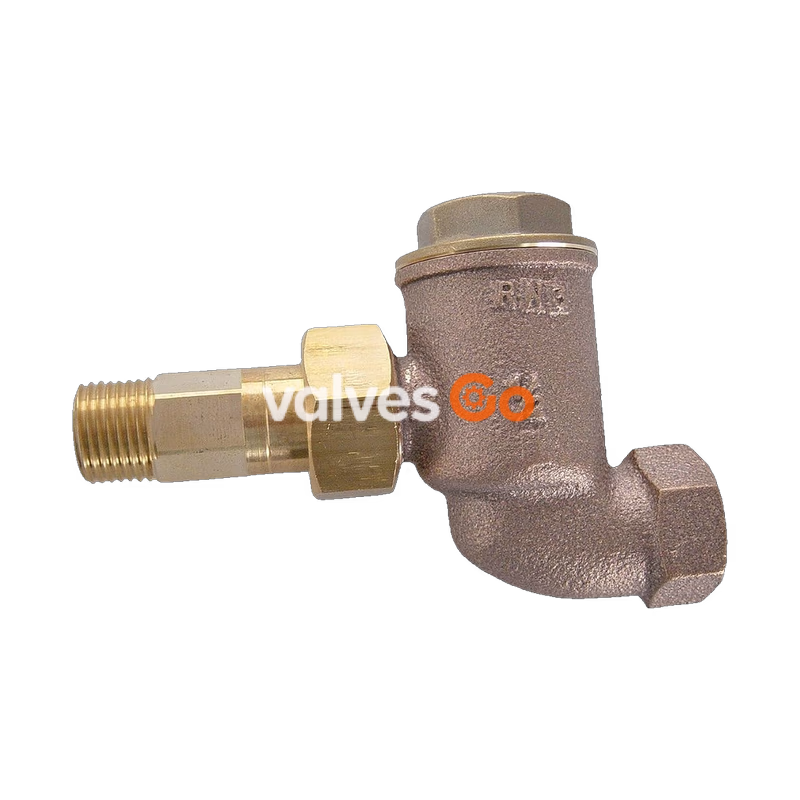

The Yoshitake TS-3S radiator trap is a straight-type bellows thermostatic steam trap supporting a working pressure of up to 0.2 MPa. Similar to the TS-1 series, it is widely used for a variety of heating equipment. It discharges cold condensate and air quickly at the start of operation.

Features

• Compact, lightweight, and reduced noise.
• Prevents freezing damage, as it is designed not to allow condensate to remain inside.
• Quickly discharges cold condensate and air at the start of operation.
• The valve and valve seat are made of stainless steel. Fluororesin is used for the cover gasket, making disassembly and assembly easy.

Specifications

Specification	Value
Application	Steam condensate
Working pressure	0.01-0.2 MPa
Maximum temperature	135°C
Connection	Inlet: JIS R screwed (union joint) Outlet: JIS Rc screwed

INFO

Recommend model TS-1H for 25A at a maximum working pressure of 0.2 MPa.

Dimensions (mm) and Weights (kg)

Nominal size	d	$L_1$	$L_2$	$L_3$	$H_1$	$H_2$	Weight (kg)
15A	1/2	85	38	123	28	67.5	0.5
20A	3/4	94	41	135	34	69.5	0.7

TS-3A Angle Type Dimensions

The related TS-3A angle type trap dimensions are: 15A (L: 80, H1: 35, H2: 74.5, Weight: 0.5 kg) and 20A (L: 87, H1: 41, H2: 76.5, Weight: 0.6 kg).

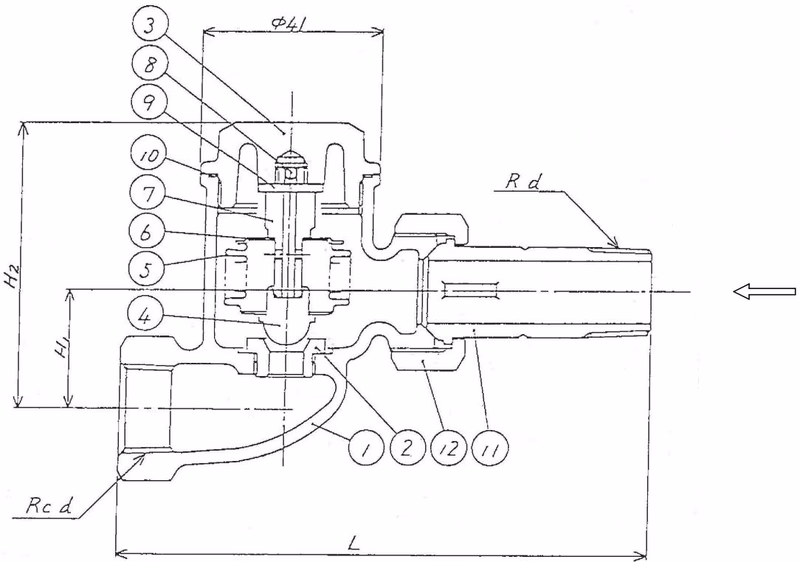

Structure and Materials

No.	Name of Parts	Material
1	Body	Bronze (CAC406)
2	Seat	Stainless Steel (SUS304)
3	Cap	Brass (C3771)
4	Valve	Brass (C3604)
5	Bellows	Phosphor Bronze (C5212)
6	Stopper	Brass (C2720)
7	Retainer	Brass (C3604)
8	Ball	Brass (C2720)
9	Spring Washer	Stainless Steel (SUS)
10	Gasket	PTFE
11	Union Nipple	Brass (C3771)
12	Union Nut	Brass (C3771)

WARNING

Parts No. 4 to 8 are an integrated structure.

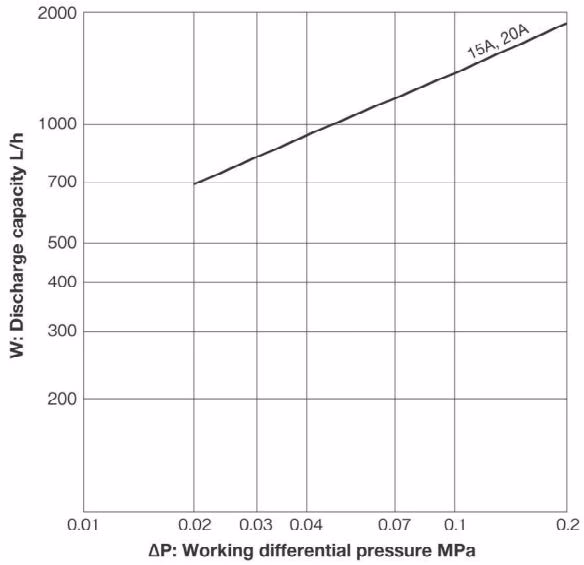

Maximum Continuous Discharge Capacity

TIP

This chart shows the maximum discharge. In designing a system, set a sufficient safety factor (two or three times).
