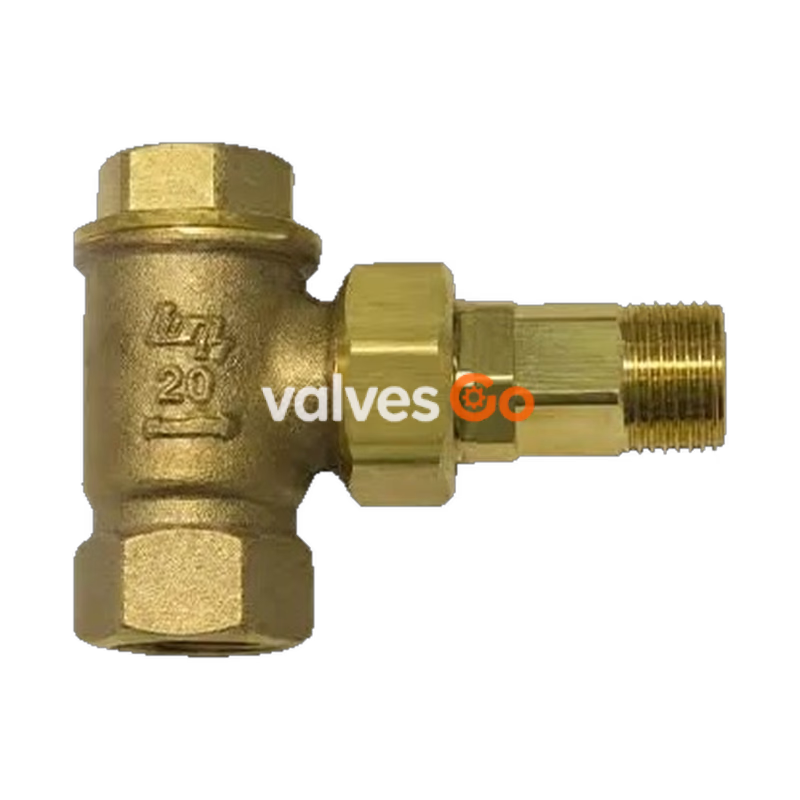

Yoshitake TS-3A is a bellows thermostatic radiator trap designed for low-pressure steam heating equipment. Supporting working pressures up to 0.2 MPa, it provides efficient condensate and air discharge to ensure optimal system performance and energy savings. The trap is widely used in residential and commercial heating radiator systems.

Features

1. Compact and Lightweight: Designed for easy installation in tight spaces with reduced operational noise.
2. Freeze Prevention: The internal structure is designed to prevent condensate retention, effectively avoiding damage caused by freezing.
3. Rapid Air Discharge: Quickly removes cold condensate and air during system startup for faster heating.
4. Durable Internals: The valve and valve seat are constructed from stainless steel for long service life.
5. Easy Maintenance: A fluororesin cover gasket allows for simple disassembly and reassembly during inspection.

Specifications

Item	Description
Application	Steam condensate
Working Pressure	0.01 - 0.2 MPa
Maximum Temperature	135°C
Body Material	Bronze
Valve Material	Brass
Valve Seat	Stainless steel
Thermoelement	Phosphor bronze
Union Material	Brass
Connection	Inlet: JIS R screwed (union joint); Outlet: JIS Rc screwed

Recommendation

For 25A applications at a maximum working pressure of 0.2 MPa, the TS-1H model is recommended.

Dimensions (mm) and Weights (kg)

TS-3A (Angle Type)

Nominal Size	d	L	H1	H2	Weight
15A	1/2	80	35	74.5	0.5
20A	3/4	87	41	76.5	0.6

TS-3S (Straight Type)

Nominal Size	d	L1	L2	L3	H1	H2	Weight
15A	1/2	85	38	123	28	67.5	0.5
20A	3/4	94	41	135	34	69.5	0.7

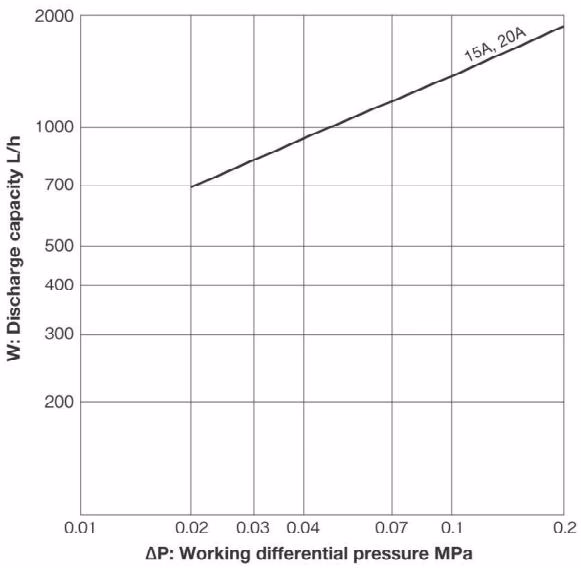

Discharge Capacity

Safety Factor

This chart shows the maximum continuous discharge capacity. When designing a system, always apply a safety factor of 2 or 3 times the actual load.

Construction Details

No.	Part Name	Material
1	Body	Bronze
2	Seat	Stainless Steel
3	Cap	Brass
4	Valve	Brass
5	Bellows	Phosphor Bronze
10	Gasket	PTFE
11	Union Nipple	Brass
12	Union Nut	Brass
