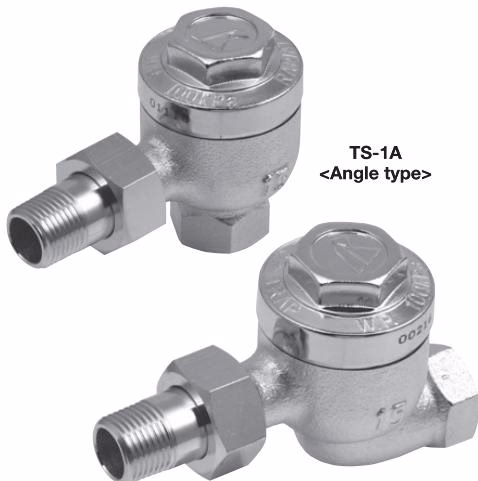

Yoshitake TS-1HA thermostatic radiator trap is used for a wide variety of heating equipment. Based on the TS-1 series design, the TS-1HA is a 25A angle type radiator trap specifically available for higher pressure operations up to 200 kPa.

Features

1. Reduced noise.
2. Free for air troubles as of bellows type.
3. The bellows is manufactured from selected material under strict quality control. Quick discharge of condensate from the system, and no steam leakage with long service life.
4. No worry for freezing.

Specifications

Application	Steam condensate
Maximum pressure	200 kPa (TS-1HA/HS), 100 kPa (Standard TS-1A/S)
Maximum temperature	120°C
Material (Body)	Bronze
Material (Valve, valve seat)	Brass
Material (Bellows)	Phosphor bronze
Material (Union)	Brass
Connection	Inlet: JIS R screwed (union joint) Outlet: JIS Rc screwed

Model Variants

• TS-1A: Angle type (100 kPa)
• TS-1S: Straight type (100 kPa)
• TS-1HA: Angle type (200 kPa, only 25A)
• TS-1HS: Straight type (200 kPa, only 25A)

Dimensions (mm) and Weights (kg)

TS-1A / TS-1HA (Angle type)

Nominal size	d	L1	H1	H2	Weight
15A	1/2	80	35	39	0.6
20A	3/4	87	41	51.5	0.9
25A	1	105	52	49	1.6

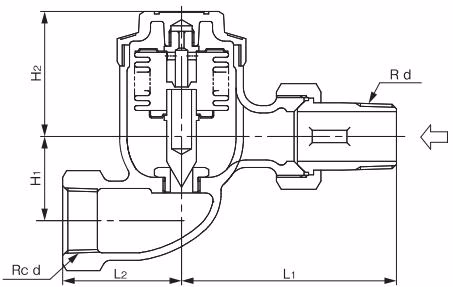

TS-1S / TS-1HS (Straight type)

Nominal size	d	L1	L2	H1	H2	Weight
15A	1/2	80	43	28	39	0.7
20A	3/4	87	48	34	51.5	1.0
25A	1	105	60	40	49	1.7

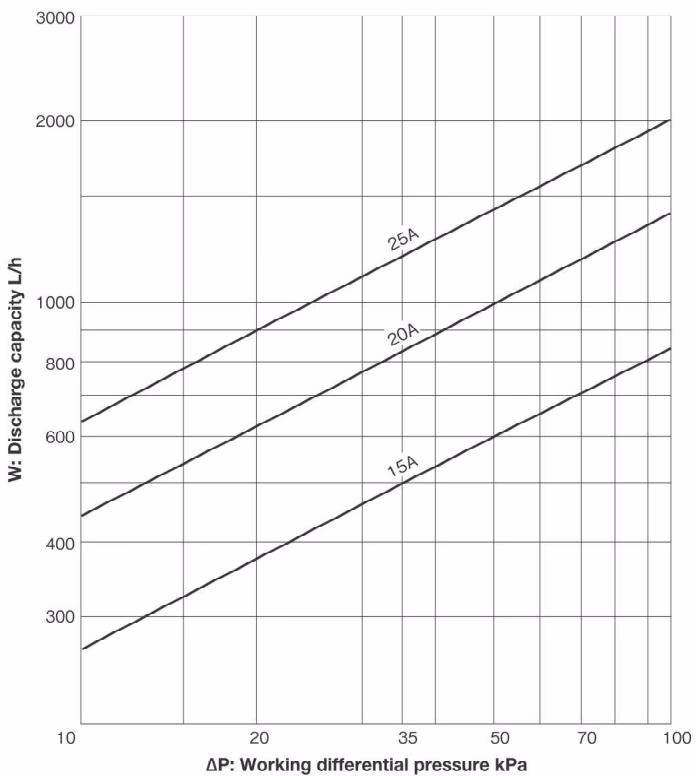

Maximum Continuous Discharge Capacity Chart

Note

This chart shows the maximum discharge. In designing a system, set a sufficient safety factor (two or three times).
