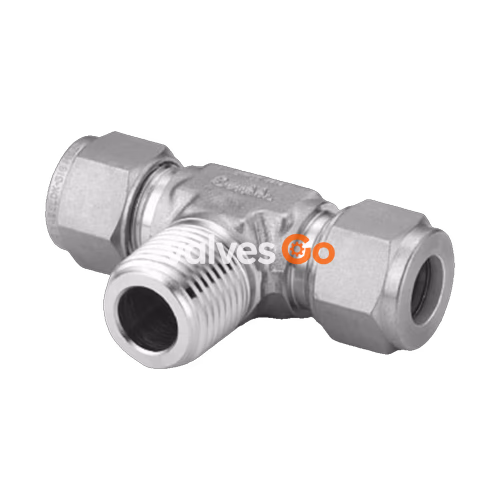

Swagelok SS-8M0-3-4TTM is a 316 stainless steel tube fitting configured as a male branch tee. This male tee tube connector enables reliable three-way connections between tubing and threaded ports—ideal for branching flow in compact, critical systems.

Specifications

Specification	Value
Body Material	316 Stainless Steel
Bored Through	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1	8 mm Swagelok® Tube Fitting
Connection 2	8 mm Swagelok® Tube Fitting
Connection 3	1/4 in. Male NPT
Flow Restrictor	No
eClass (10.1)	37020506
UNSPSC (17.1001)	40183102

Mixing and Interchangeability

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.

Safe Product Selection

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
