PN100

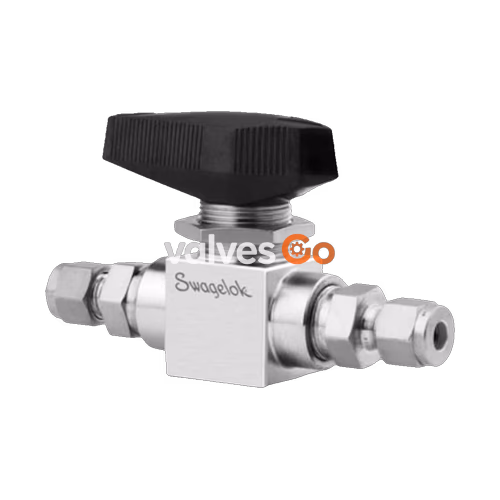

Swagelok SS-83TS6 trunnion-style 83 series 3-piece ball valve offers durable service in high- and low-pressure applications. It features a compact maximum flow design, low operating torque, and a wide operating temperature range. It is available with ECE R110 type approval.
Specifications
| Specification | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 3/8 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Max Cv | 1.4 |
| Flow Pattern | 2-way, shut-off, straight |
| Handle Color | Black |
| Handle Type | Phenolic handle |
| Low Emissions Certified | Yes |
| Orifice | 0.187 in / 4.7 mm |
| Room Temperature Pressure Rating | 1500 PSIG @ 100 °F / 103 BAR @ 37 °C |
| Seat Material | PTFE |
| Service Class | General |
| Testing | Tested according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37010401 |
| eClass (6.1) | 37010401 |
| eClass (10.1) | 37010401 |
| UNSPSC (4.03) | 40141607 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (17.1001) | 40183107 |
Safety Warning
Do not mix or interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
