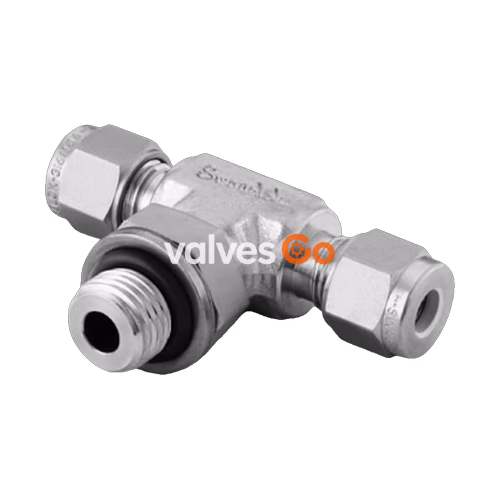

Swagelok SS-6M0-3-4TTR is a high-performance 316 stainless steel positionable male branch tee designed for critical fluid systems. This tube fitting enables reliable three-way connections between tubing and threaded ports, making it ideal for branching flow in compact environments where orientation is essential.

Performance and Reliability

The Swagelok tube fitting design provides a leak-tight seal and robust vibration resistance, ensuring consistent performance in demanding applications. The excellence of these fittings is supported by over 65 years of successful implementation and extensive testing under extreme conditions. This specific model features a positionable male ISO parallel thread on the branch, allowing for precise alignment during installation.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connection 1 & 2	6 mm Swagelok® Tube Fitting
Connection 3 (Branch)	1/4 in. Male ISO Parallel Thread
Cleaning	Standard Cleaning and Packaging (SC-10)
Bored Through	No
Flow Restrictor	No

Industry Identifiers

• eClass (10.1): 37020506
• UNSPSC (15.1): 40183102
• UNSPSC (17.1001): 40183102

Safety and Installation

Proper system design is essential for safe, trouble-free performance. System designers and users must ensure material compatibility, adequate pressure/temperature ratings, and correct installation. Do not mix or interchange Swagelok components with those from other manufacturers not governed by the same industrial design standards.
