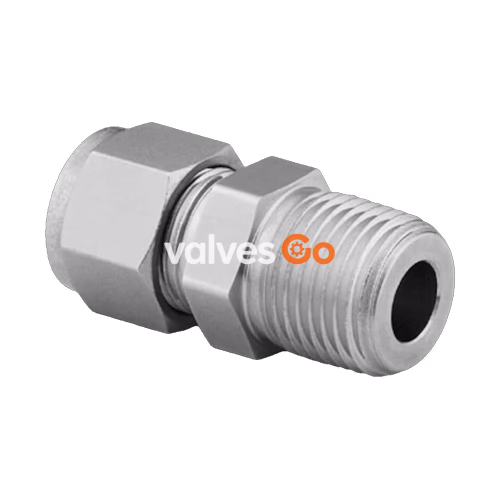

Swagelok SS-1610-1-20 is a stainless steel male connector tube fitting. This straight male tube connector enables secure connections between tubing and threaded ports, making it ideal for critical fluid systems.

Specifications

Attribute	Value
Body Material	316 Stainless Steel
Bored Through	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1 1/4 in.
Connection 2 Type	Male NPT
Flow Restrictor	No

WARNING

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
