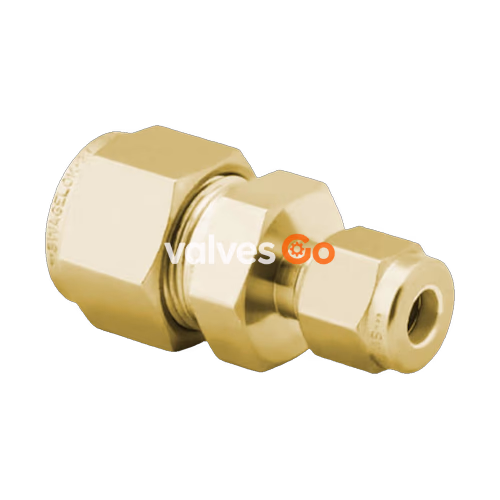

Swagelok B-200-6-1 is a brass reducing union tube fitting designed to connect tubing of different sizes in a linear path. It features a 1/8 in. Swagelok tube fitting on one end and a 1/16 in. Swagelok tube fitting on the other, providing reliable leak-tight performance for fluid systems.

Straights

Straight reducer fitting connects tubing of different sizes in a linear path—ideal for maintaining flow efficiency in compact, critical systems.

Specifications

Specification	Value
Body Material	Brass
Bored Through	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/8 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/16 in.
Connection 2 Type	Swagelok® Tube Fitting
Flow Restrictor	No
eClass (4.1)	37030710
eClass (5.1.4)	37020590
eClass (6.0)	37020590
eClass (6.1)	37020590
eClass (10.1)	37020590
UNSPSC (4.03)	40142601
UNSPSC (10.0)	40142600
UNSPSC (11.0501)	40142600
UNSPSC (13.0601)	40183100
UNSPSC (15.1)	40183100
UNSPSC (17.1001)	40183112

System Design and Component Mixing

When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
