Brass

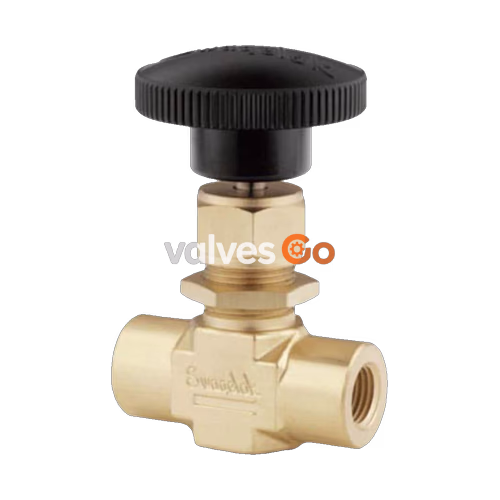

Swagelok B-1RF2 integral-bonnet needle valves are compact needle valves available in a full range of sizes, configurations, and materials for a variety of applications. This straight pattern model is equipped with a regulating stem and a brass body with 1/8 in. female NPT connections.
Specifications
| Specification | Value |
|---|---|
| Body Material | Brass |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/8 in. |
| Connection 1 Type | Female NPT |
| Connection 2 Size | 1/8 in. |
| Connection 2 Type | Female NPT |
| CV Maximum | 0.37 |
| Handle Style | Phenolic Knob |
| Low Emissions Certified | Yes |
| Maximum Temperature, °F (°C) | 400 (204) |
| Max Temperature Pressure Rating | 400°F @ 390 PSIG /204°C @ 26 BAR |
| Minimum Temperature, °F (°C) | -65 (-53) |
| Stem Tip Material | Brass |
| Stem Type | Regulating |
WARNING
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
