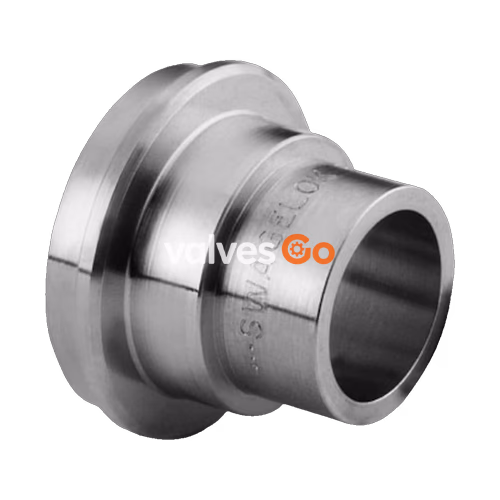

Swagelok 6LV-8-VCR-3S-4TB7P 316L VAR VCR fitting, short TBW gland. This short VCR® gland supports compact, high-purity face seal connections in tight spaces, making it ideal for semiconductor and vacuum-grade assemblies. It features a 1/2 in. VCR® metal gasket face seal gland and a 1/4 in. tube butt weld connection with a 0.75 in. (19.1 mm) extension, and is processed to Ultrahigh-Purity Process Specification (SC-01).

WARNING

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.

Specifications

Specification	Value
Body Material	316L VAR
Cleaning Process	Ultrahigh-Purity Process Specification (SC-01)
Connection 1 Size	1/2 in.
Connection 1 Type	VCR® Metal Gasket Face Seal Gland
Connection 2 Size	1/4 in.
Connection 2 Type	Tube Butt Weld
Feature	Electropolished
Flow Restrictor	No
eClass (4.1)	37020713
eClass (5.1.4)	37920191
eClass (6.0)	22569200
eClass (6.1)	37029290
eClass (10.1)	37029290
UNSPSC (4.03)	31163000
UNSPSC (10.0)	40142610
UNSPSC (11.0501)	40142610
UNSPSC (13.0601)	40183107
UNSPSC (15.1)	40183107
UNSPSC (17.1001)	40183107
