Super Duplex Stainless Steel

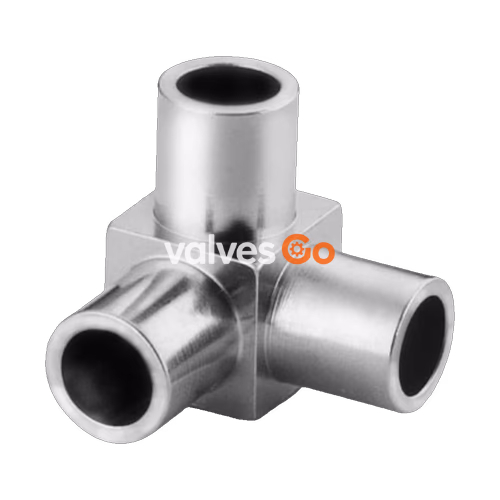

Swagelok 6LV-4MW-91 is a 316L VIM-VAR Micro-Fit® 3D Tee (Tee + Elbow) with a 1/4 in. outer diameter. It is designed to achieve the strength and reliability of a permanent connection using ultra-high-purity, specially cleaned industrial weld fittings made from advanced alloys.
Specifications
| Attribute | Value |
|---|---|
| Body Material | 316L VIM-VAR |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Micro-Fit Tube Butt Weld |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Micro-Fit Tube Butt Weld |
| Connection 3 Size | 1/4 in. |
| Connection 3 Type | Micro-Fit Tube Butt Weld |
| Flow Restrictor | No |
| eClass (4.1) | 37020716 |
| eClass (5.1.4) | 37020502 |
| eClass (6.0) | 37020500 |
| eClass (6.1) | 37020502 |
| eClass (10.1) | 37020501 |
| UNSPSC (4.03) | 40142603 |
| UNSPSC (10.0) | 40142604 |
| UNSPSC (11.0501) | 40142604 |
| UNSPSC (13.0601) | 40183101 |
| UNSPSC (15.1) | 40183101 |
| UNSPSC (17.1001) | 40183101 |
Interchangeability Warning
Do not mix or interchange Swagelok products or components not meeting industrial design standards (including Swagelok tube fitting end connections) with those of other manufacturers.
