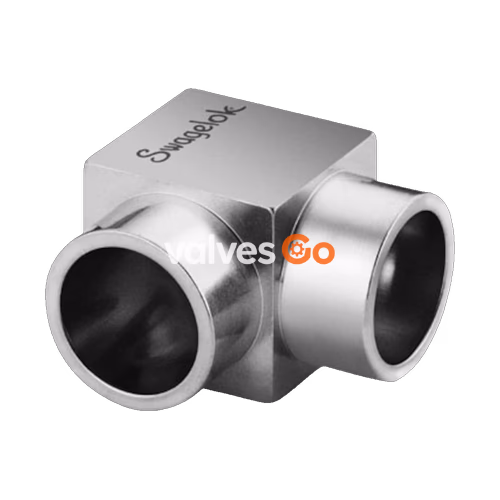

Swagelok 6LV-2MW-9 316L VIM-VAR Micro-Fit® 90° Union Elbow, 1/8 in. OD. Micro-Fit® 90° elbow delivers tight-radius turns with ultra-clean welds, ideal for compact, high-purity systems requiring smooth directional flow.

Specifications

Specification	Value
Body Material	316L VIM-VAR
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/8 in.
Connection 1 Type	Micro-Fit Tube Butt Weld
Connection 2 Size	1/8 in.
Connection 2 Type	Micro-Fit Tube Butt Weld
Flow Restrictor	No
eClass (4.1)	37020715
eClass (5.1.4)	37020502
eClass (6.0)	37020501
eClass (6.1)	37020502
eClass (10.1)	37019190
UNSPSC (4.03)	40142603
UNSPSC (10.0)	40142604
UNSPSC (11.0501)	40142604
UNSPSC (13.0601)	40183101
UNSPSC (15.1)	40183101
UNSPSC (17.1001)	40183101

WARNING

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function material compatibility, adequate ratings, proper installation operation, and maintenance are the responsibilities of the system designer and user

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers
