Product Overview

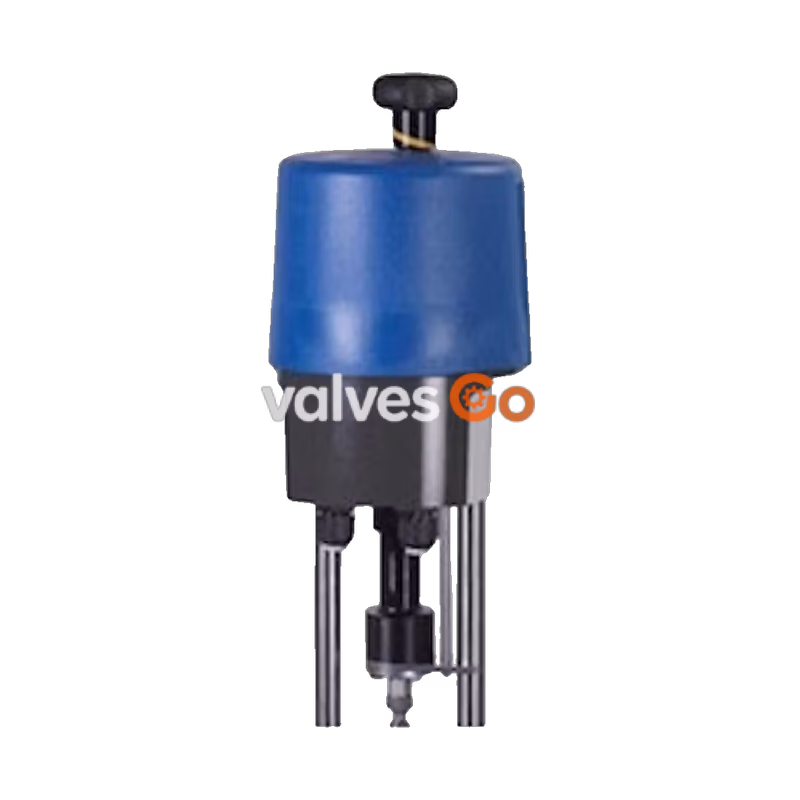

Spirax Sarco AEL5 Series Electric Actuators are reversible actuators with linear output characteristics, specifically designed for DN15 to DN100 control valves. This series offers excellent compatibility and can be fitted to SPIRA-TROL 2-port valves and QL33, QL43, QL63, QL73 3-port valves using appropriate valve adapters and mounting flanges, meeting valve control requirements across various operating conditions.

The actuators are available in four power input options: 230Vac, 115Vac, 24Vac, and 24Vdc. Standard models accept VMD (Valve Motor Drive) signals. For precise control, an AEL5961 positioner board can be installed to accept 4-20mA or 2-10Vdc control signals (note: 24VDC models cannot be fitted with positioner boards). Optional 1kΩ feedback resistance potentiometer is available for use with the positioner board or as feedback for VMD input signals. Additional accessories include auxiliary limit switches and anti-condensation heaters (see TI-P358-28 for details).

Materials

Component	Thrust Range	Material
Housing	1-8 kN	Polyester
Housing	14-25 kN	Die-cast Aluminum
Valve Adapter	-	Model-specific material (see Installation Adaptation section)
Mounting Flange	-	Model-specific material (see Installation Adaptation section)

Technical Specifications

Parameter	Details
Power Supply	230Vac, 115Vac, 24Vac, 24Vdc
Power Frequency	Continuous operation (50/60 Hz, power consumption varies)
Enclosure Rating	IP65 (indoor/outdoor installation with adequate protection)
Ambient Limits	-20 to +60°C (-20 to +50°C with positioner board)
Motor Type	Synchronous motor (1-14 kN), capacitor reversing motor (25 kN), or brushed DC motor (DC models)
Manual Override	Handwheel
Cable Entry	1-14 kN: 2×M20×1.5; 25 kN: 3×M20×1.5
Certification	Compliant with EN50081-1, EN50082-2 (EMC), EN61010-1/A2 (Safety), 92/31/EEC amending 89/336/EEC, 93/68EEC (LVD) amending 93/68/EEC (EMC) and 72/73/EEC

Installation Adaptation

Mounting Flange Selection

Valve Type	Valve Size	AEL51_/AEL52_/AEL53_/AEL54_/AEL55_ Actuator	AEL56_ Actuator
KE, KEA, LE, LEA, QL	DN15 - DN50	EL5970	-
LE, LEA	DN65 - DN100	EL5971	-
KE, KEA, QL	DN65 - DN100	EL5971	EL5972
JE, JEA	DN15 - DN100	EL5971J	-
JE, JEA	DN65 - DN100	EL5972J	EL5972

Valve Adapter Selection

Valve Type	Valve Size	Thread	AEL51_	AEL52_	AEL53_	AEL54_	AEL55_	AEL56_
KE, KEA, LE, LEA, QL	DN15 - DN50	M8 Thread	AEL6911 Standard	AEL6911 Standard	AEL6911 Standard	AEL6911 Standard	AEL6911 Standard	-
KE, KEA, LE, LEA, QL	DN65 - DN100	M12 Thread	Integrated	Integrated	Integrated	Integrated	Integrated	EL5945
JE, JEA	DN15 - DN50	M8 Thread	AEL6911J	AEL6911J	AEL6911J	AEL6911J	AEL6911J	-
JE, JEA	DN65 - DN100	M12 Thread	EL6912J	EL6912J	EL6912J	EL6912J	EL6912J	EL5945

Maximum Differential Pressure

KE, LE, KEA and LEA 2-Port Valves (Class IV Shut-off)

PTFE or Graphite Stem Seal

Valve Size (DN)	15	20	25	32	40	50	65	80	100
Kv Value	4.0	6.3	10	16	25	36	63	100	160
Stroke	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	30 mm	30 mm	30 mm

Bellows Seal (PTFE or Graphite Stem Seal)

Actuator Model	Voltage	PTFE Seal (DN15)	Graphite Seal (DN15)	PTFE Seal (DN20)	Graphite Seal (DN20)
AEL52211JX	230	4.8	2.3	4.8	2.3
AEL52212GX	115	4.8	2.3	4.8	2.3
AEL52213FX	24	4.8	2.3	4.8	2.3

(For complete differential pressure data by actuator model, refer to the original product documentation. Unit: bar)

KE, LE, KEA and LEA 2-Port Valves (Class VI Shut-off, PTFE(G) Seat Seal Only)

PTFE or Graphite Stem Seal

Valve Size (DN)	15	20	25	32	40	50	65	80	100
Kv Value	4.0	6.3	10	16	25	36	63	100	160
Stroke	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	30 mm	30 mm	30 mm

(For complete differential pressure data by actuator model, refer to the original product documentation. Unit: bar)

JE and JEA 2-Port Valves (Class IV Shut-off)

PTFE or Graphite Stem Seal

Valve Size (DN)	15	20	25	32	40	50	65	80	100
Kv Value	4.0	6.3	10	16	25	36	63	100	160
Stroke	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	30 mm	30 mm	30 mm

(For complete differential pressure data by actuator model, refer to the original product documentation. Unit: bar)

JE and JEA 2-Port Valves (Class VI Shut-off)

PTFE or Graphite Stem Seal

Valve Size (DN)	15	20	25	32	40	50	65	80	100
Kv Value	4.0	6.3	10	16	25	36	63	100	160
Stroke	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	30 mm	30 mm	30 mm

(For complete differential pressure data by actuator model, refer to the original product documentation. Unit: bar)

QL 3-Port Valves (For Modulating Control Only)

PTFE or Graphite Stem Seal

Valve Size (DN)	15	20	25	32	40	50	65	80	100
Kv Value	4.0	6.3	10	16	25	36	63	100	160
Stroke	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	30 mm	30 mm	30 mm

(For complete differential pressure data by actuator model, refer to the original product documentation. Unit: bar)

Dimensions and Weights (Approximate)

Actuator Series	A (mm)	B (mm)	C (mm)	Weight (kg)
AEL51_	460	177	138	4.5
AEL52_	460	177	138	4.8
AEL53_	460	177	138	5.2
AEL54_	506	177	150	7.0
AEL55_	569	225	231	10.0
AEL56_	807	227	280	20.0

Selection Guide

Selection Instructions

Selection Steps

1. Determine control valve model, size (DN), Kv value, PN rating, and maximum differential pressure requirements.
2. Select appropriate power supply voltage (230Vac, 115Vac, 24Vac, 24Vdc).
3. Confirm control signal type (standard VMD signal or 4-20mA/2-10Vdc signal; the latter requires ordering a positioner board, except for 24VDC models).
4. Based on valve type and size, select the corresponding mounting flange and valve adapter.
5. If feedback function is required, select models with potentiometer.
6. Based on operating conditions, determine if auxiliary limit switches, anti-condensation heaters, or other accessories are needed.

Selection Examples

Selection Factor	Example 1	Example 2
Control Valve	DN20 KE43 PTSUSS.2 Kv6.3 PN40	DN65 KE43 PTSUSS.2 Kv63 PN40
Max Differential Pressure	20 bar	20 bar
Power Supply	230Vac	230Vac
Control Signal	4-20mA	4-20mA
Selected Actuator	AEL51211JXA	AEL54211JXA
Positioner Board	AEL5961	AEL5961
Valve Adapter	AEL6911 (Standard)	N/A
Mounting Flange	EL5970	EL5971

Important Notes

Notes

• 24VDC actuator models cannot be fitted with positioner boards.
• Actuator installation must include the corresponding mounting flange and valve adapter; do not mix components.
• For actuators with adjustable speed requirements, contact Spirax Sarco directly.
• Positioner board power consumption should be confirmed based on actual model and operating conditions; consult the manufacturer for specific parameters.
• When installing actuators outdoors, ensure adequate protective measures to maintain IP65 enclosure rating effectiveness.

Ordering Information

Ordering Notes

• Product model must specify power supply voltage, control signal type, potentiometer option, and required accessories.
• Mounting flanges and valve adapters must be selected and ordered separately based on valve type and size (except for models with standard inclusion).
• Auxiliary limit switches, anti-condensation heaters, and other accessories must be specified separately when ordering.
• For valves with 0/2-10V or 4-20mA control, the corresponding AEL5961 positioner board must be ordered.
