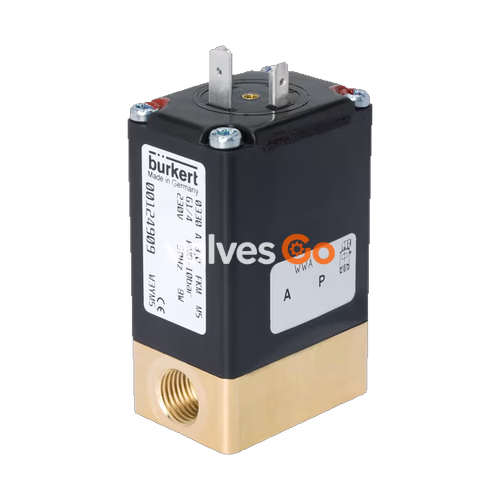

Burkert Type 0330 (Article 461284) is a direct-acting, media-separated pivoted armature solenoid valve. It features maintenance-free pivoted armature technology and a vibration-proof, block screwed coil system. The solenoid coils are moulded with a chemically resistant epoxy. Since the coil system is separated from the medium by a diaphragm, the valve is especially suitable for critical media such as aggressive acids and alkalis. The 0330 is equipped with a service-friendly, robust manual override for start-up and testing.

General Technical Data

Property	Value
Orifice	DN 2...DN 5 (Model 461284: 3.0 mm)
Body Material	Brass, Stainless steel (1.4401), PP, PVDF, PEEK
Seal Material	EPDM, FKM, FFKM, NBR
Duty Cycle	100% continuous operation (for brass, stainless steel, PEEK)
Voltage	24 V DC (Model 461284)
Voltage Tolerance	±10%
Degree of Protection	IP65 with cable plug
Thermal Insulation Class	Epoxy coil class H

Circuit Functions

Symbol	Description
	Circuit function A (CF A) 2/2-way solenoid valve Direct-acting Normally closed
	Circuit function B (CF B) 2/2-way solenoid valve Direct-acting Normally open
	Circuit function C (CF C) 3/2-way solenoid valve Direct-acting Normally closed
	Circuit function D (CF D) 3/2-way solenoid valve Direct-acting Normally open
	Circuit function E (CF E) 3/2-way mixing valve (solenoid valve)
	Circuit function F (CF F) 3/2-way distribution valve (solenoid valve) Direct-acting
	Circuit function T (CF T) 3/2-way solenoid valve Direct-acting Flow direction optional Normally closed

Materials

No.	Element	Material
1	Coil	Epoxy
2	Diaphragm	EPDM, FKM, FFKM, NBR
3	O-ring	EPDM, FKM, FFKM, NBR
4	Seat	Brass, Stainless steel (1.4401), PP, PEEK
5	Valve body	Brass, Stainless steel (1.4401), PP, PEEK

Dimensions

Metal Body (Standard Variant)

Note

• Dimensions in mm
• For metal bodies, the minimum thread length at the middle connection is 7.5 mm.
• Screw-in depth of G 1/4 connection threads: When using pipe fittings, select variants with G 1/8, as the screw-in depth with G 1/4 is not sufficient.

D1	L1	D2	L2
G 1/8	9	-	-
G 1/4	9	NPT 1/4	7.5

Performance Specifications

Pressure range and flow rate (Metal body, Standard variant)

Circuit function	DN [mm]	Kv value water DC [m³/h]	Kv value water AC [m³/h]	Pressure range Standard [bar]	Pressure range Vacuum [bar]
A / B / C / D / F	2	0.08	0.11	0...16	-0.98...10
A / B / C / D / F	3	0.14	0.18	0...10	-0.98...6
A / B / C / D / F	4	0.17	0.23	0...5	-0.98...3
A / B / C / D / F	5	0.29	0.29	0...2.5	-0.98...1
E	2	0.08	0.11	0...10	-0.98...8
E	3	0.14	0.18	0...6	-0.98...5
E	4	0.17	0.23	0...3	-0.98...2.5
E	5	0.29	0.29	0...1.5	-0.98...1
T	2	0.08	0.11	0...12	-0.98...8
T	3	0.14	0.18	0...8	-0.98...5
T	4	0.17	0.23	0...4	-0.98...2.5

Installation & Electrical Connection

DANGER!

Risk of injury from high pressure in the system/device. Before working on equipment or device, switch off the pressure and deaerate/drain lines.

Pin assignment standard variant

The pin assignment depends on the circuit function.

Circuit function	Connection 1	Connection 2	Connection 3
A	P	A	-
B	B	P	-
C	P	A	R
D	R	B	P
E	P1	A	P2
F	A	P	B
T	NC	IN/OUT	NO
