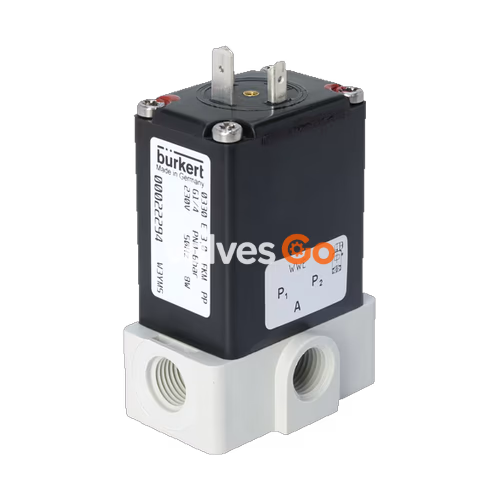

BURKERT 454192 (Type 0330) is a direct-acting, media-separated pivoted armature solenoid valve. Configured as a 3/2-way variant, it operates as a distributing valve (Circuit function F). The solenoid coils are moulded with a chemically resistant epoxy. Since the coil system is separated from the medium by a diaphragm, the valve is especially suitable for critical media such as aggressive acids and alkalis. This specific model features a Polypropylene (PP) body, FKM (Fluor rubber) seals, a 4.0 mm orifice, and an NPT 1/4 port connection, operating at 120V/60Hz.

The valve is equipped with a service-friendly, robust manual override for start-up and testing. It utilizes maintenance-free pivoted armature technology and a vibration-proof, block screwed coil system.

General Technical Data

Property	Value
Orifice	DN 4.0 mm
Circuit function	F (3/2-way distribution valve)
Body material	PP (Polypropylene)
Seal material	FKM (Fluor rubber)
Port connection	NPT 1/4
Voltage	120 V / 60 Hz AC
Pressure range	0...5 bar
Medium temperature	0 °C to +80 °C
Ambient temperature	Max. +55 °C
Viscosity	Max. 37 mm²/s
Duty cycle (PP body)	40 % duty cycle (60 % intermittent operation) in 30 min for 8 W variant
Degree of protection	IP65 with cable plug
Electrical connection	Plug contacts according to DIN EN 175 301-803 form A
Installation position	As required, preferably with actuator upright

Circuit Function

Circuit function F (CF F) 3/2-way distribution valve (solenoid valve), Direct-acting

Material Specifications

No.	Element	Material
1	Coil	Epoxy
2	Diaphragm	FKM
3	O-ring	FKM
4	Seat	PP (Polypropylene)
5	Valve body	PP (Polypropylene)

Performance Specifications

Pressure range and flow rate (Plastic body, Standard variant)

Circuit function	DN	Kv value water (m³/h)	Pressure range Standard AC (bar)
F	4.0	0.30	0...5

Note: Measurement at +20 °C, 6 bar at the valve outlet, opening: pressure build-up 0...90 %, closing: pressure reduction 100...10 %.

Dimensions

Plastic Body Variant

D	L
G 1/4	12
NPT 1/4	11

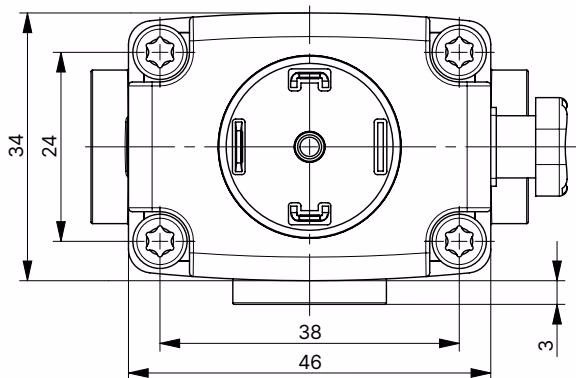

Note: Dimensions in mm. The device can be attached via the existing holes on the bottom side. The hole pattern is 38x24. For plastic bodies, use either self-tapping screws or a body with metric thread inserts. The screw-in depth must be observed.

Safety and Installation

DANGER!

Risk of injury from high pressure in the system/device ▶ Before working on equipment or device, switch off the pressure and deaerate/drain lines.

Risk of injury from electric shock ▶ Before working on the system or device, switch off the power supply and secure against reactivation. ▶ Observe the applicable accident prevention and safety regulations for electrical devices.

WARNING!

Risk of burns or fire from hot device surfaces due to prolonged activation time ▶ Keep the device away from highly flammable substances and media and do not touch with bare hands.

Before installation:

• Check pipelines for soiling and clean if required.
• For safe operation of the solenoid valve, a dirt trap (≤ 500 µm) must be installed before the valve inlet.

Manual override: When manual override is locked, the valve cannot be electrically actuated. Press and hold the manual override, then turn clockwise to lock.
