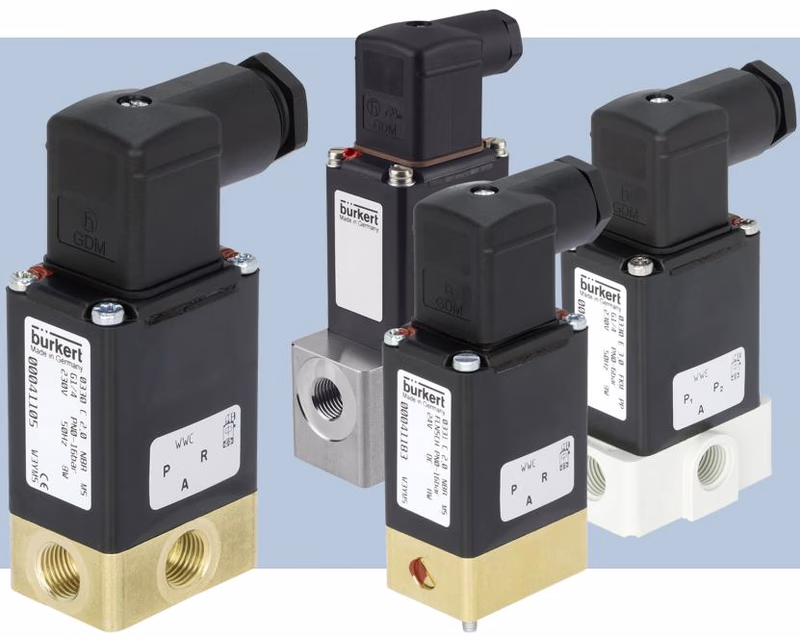

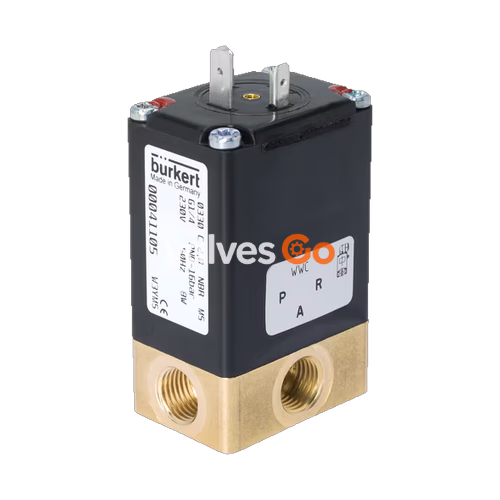

BURKERT Type 0330 (SKU 452785) is a direct-acting, media-separated pivoted armature solenoid valve. It is available as a 2/2 and 3/2-way variant, with SKU 452785 specifically configured as a 3/2-way normally closed valve (Circuit Function C). The solenoid coils are moulded with a chemically resistant epoxy. Since the coil system is separated from the medium by a diaphragm, the valve is especially suitable for critical media such as aggressive acids and alkalis.

The Type 0330 is equipped with a service-friendly, robust manual override for start-up and testing. It features maintenance-free pivoted armature technology and a vibration-proof, block screwed coil system.

General Technical Data

Property	Value
Orifice	DN 2.0 mm
Body Material	Brass
Seal Material	FKM (Fluor rubber)
Port Connection	NPT 1/4 (Internal thread)
Voltage	12 V DC
Pressure Range	0 - 12 bar
Medium Temperature	0 °C to +90 °C
Ambient Temperature	Max. +55 °C
Duty Cycle	100% continuous operation
Degree of Protection	IP65 with cable plug
Installation Position	As required, preferably with actuator upright

INFO

Functional Safety Note: During a long period of downtime, at least 1–2 switching operations per restart are recommended to ensure proper function.

Circuit Function

SKU 452785 operates with Circuit Function C (CF C).

Symbol	Description
	Circuit function C (CF C) 3/2-way solenoid valve Direct-acting Normally closed

Materials

No.	Element	Material
1	Coil	Epoxy
2	Diaphragm	FKM
3	O-ring	FKM
4	Seat	Brass
5	Valve body	Brass

Dimensions (Metal Body)

Dimensions in mm.

D1	L1	D2	L2
G 1/8	9	-	-
G 1/4	9	NPT 1/4	7.5

WARNING

Caution! Risk of breakage Do not use the coil as a lever arm during installation. Use PTFE tape as a seal material. Hold the device on the body using the appropriate tool (open-ended spanner) and screw into the pipeline.

Performance Specifications

Pressure range and flow rate (Standard variant, Metal body, CF C):

DN	Kv value water (DC)	Pressure range (Standard DC)	Vacuum
2.0 mm	0.08 m³/h	0...12 bar	-0.98...10 bar

Note: The maximum medium pressure is 12 bar for seal material FKM.

Electrical Connection

Pin assignment standard variant:

The pin assignment depends on the circuit function. For Circuit Function C:

• Connection 1: P
• Connection 2: A
• Connection 3: R

DANGER

Risk of injury from electric shock Before working on the system or device, switch off the power supply and secure against reactivation. There is a risk of electric shock if the protective conductor is not connected. Connect protective conductor and check electrical continuity between coil and body.
