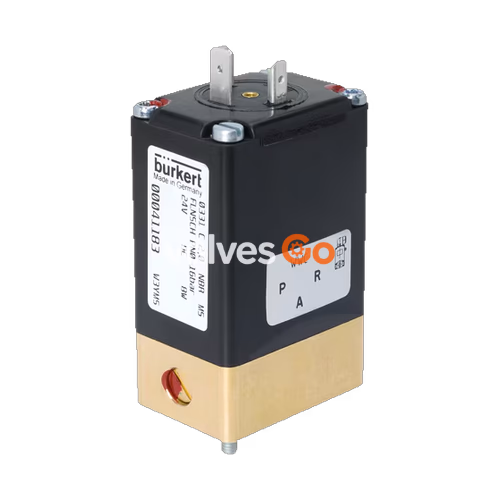

BURKERT 387300 (Type 0331) is a direct-acting, media-separated pivoted armature solenoid valve. It features a 2/2-way normally closed (Circuit Function A) configuration with a brass body, NBR seal, and a Bürkert-specific flange connection. The solenoid coil is moulded with a chemically resistant epoxy, and the coil system is separated from the medium by a diaphragm, making it highly reliable for various industrial applications. This specific model operates at 24V DC and handles pressures from 0 to 16 bar.

Key Features

• Direct-acting, media-separated valve
• Maintenance-free pivoted armature technology
• Service-friendly, robust manual override
• Flange interface according to Bürkert standard

Circuit Function

Circuit Function A (CF A): 2/2-way solenoid valve, direct-acting, normally closed.

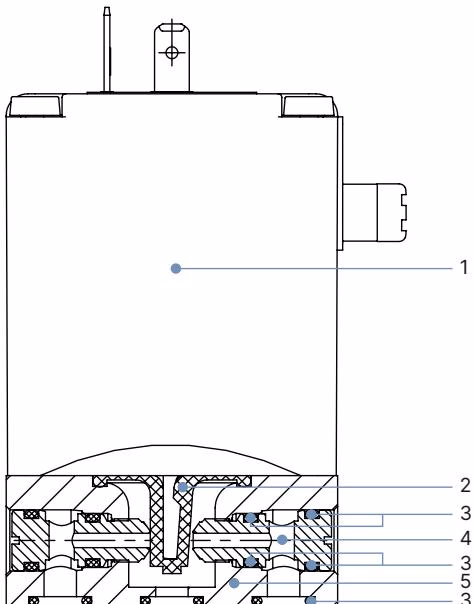

Material Specifications

No.	Element	Material
1	Coil	Epoxy
2	Diaphragm	NBR (for SKU 387300)
3	O-ring	NBR
4	Seat	Brass
5	Valve body	Brass

Operating Conditions

• Medium: Neutral mediums such as compressed air, town gas, water, hydraulic oil, oils and greases without additives, oxygen (due to NBR seal).
• Medium Temperature: 0 °C to +80 °C
• Ambient Temperature: Max. +55 °C
• Viscosity: Max. 37 mm²/s
• Duty Cycle: 100% continuous operation (for brass body)
• Degree of Protection: IP65 with correctly connected and installed cable plug

Installation Recommendation

For safe operation of the solenoid valve, a dirt trap (≤ 500 µm) must be installed before the valve inlet. The installation position is flexible, but preferably with the actuator upright.

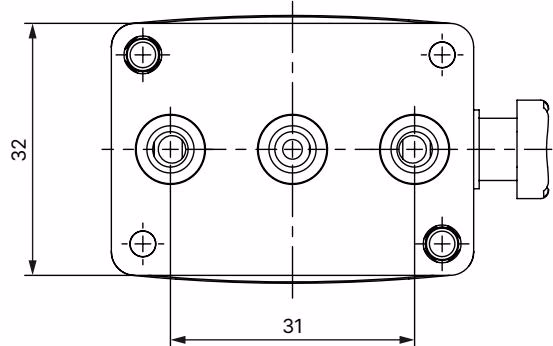

Dimensions

Standard Variant - Metal Body
