The Burkert 353441 (Type 0331) is a direct-acting, media-separated pivoted armature solenoid valve. As a 3/2-way universal variant (Circuit function T), it offers flexible port connections depending on the application. The solenoid coils are moulded with a chemically resistant epoxy. Since the coil system is separated from the medium by a diaphragm, the valve is especially suitable for critical media. This specific model features an explosion-proof coil with a 3-meter moulded cable, a brass body, a flange connection, and EPDM seals.

Technical Data

Property	Value
Orifice	2.0 mm
Circuit Function	T (3/2-way, universal use)
Body Material	Brass
Seal Material	EPDM
Port Connection	Flange (Bürkert flange 32 x 46 version A2)
Pressure Range	0 to 10 bar
Voltage	230 V AC/DC
Medium Temperature	-30 °C to +90 °C
Ambient Temperature	Max. +55 °C
Degree of Protection	IP65
Explosion Protection	ATEX, IECEx (II 2 G Ex mb IIC T4 Gb, II 2 D Ex mb IIIC T130°C Db)

Circuit Function

Circuit Function T (CF T) 3/2-way solenoid valve, direct-acting, flow direction optional, normally closed.

Performance Specifications

Explosion-proof variant (Brass body, Circuit function T)

DN	Kv value water [m³/h]	Pressure range Standard [bar]	Pressure range Vacuum [bar]
2.0	0.10	0...10	-0.98...8

Note: Pressure data indicates overpressure to atmospheric pressure.

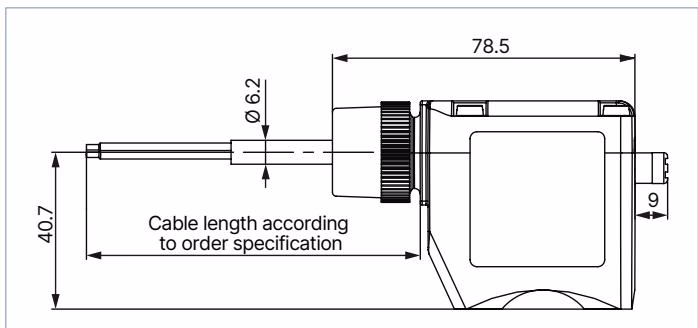

Dimensions

Explosion-proof variant with cable (Dimensions in mm)

Electrical Connection

DANGER!

Risk of injury from electric shock ▶ Before working on the system or device, switch off the power supply and secure against reactivation. ▶ Observe the applicable accident prevention and safety regulations for electrical devices.

The connection cable is cast with the Type ACP016 solenoid and cannot be removed. Observe the voltage listed on the type label.

Wire assignment for solenoids with cable outlet:

Wire colour	Pin assignment
Green-yellow	Protective conductor
Black	Phase/positive pole (+)
Black	Neutral conductor/negative pole (−)

Installation Notes

WARNING!

Risk of injury due to improper installation ▶ Installation may only be performed by trained technicians and with the appropriate tools. ▶ Secure the system against unintentional activation. ▶ Ensure a controlled restart after installation.

• Installation position: As required, preferably with actuator upright.
• Dirt trap: For safe operation of the solenoid valve, a dirt trap (≤ 500 µm) must be installed before the valve inlet.
• Flange variant fastening: Using the screws supplied, fasten to base devices or connection plate. Tighten the fastening screws on the coil with a maximum torque of 2 Nm.
