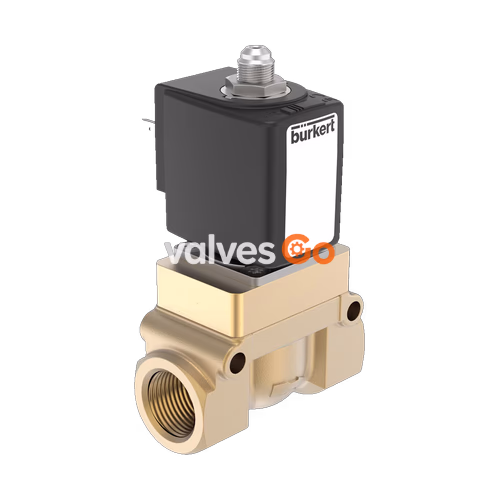

BURKERT 307326 (Type 5404) is a servo-assisted 2/2-way piston solenoid valve designed for steam applications (variant NA07). A minimum differential pressure is required for the valve switching function. The solenoid coils are moulded with high-quality epoxy resin. In combination with a plug to DIN EN 175301-803 Form A, the valve satisfies degree of protection IP65.

General Technical Data

Feature	Value
Orifice	DN 20
Circuit function	A (Normally closed)
Body material	Brass
Seal material	PTFE seat seal and Graphite
Coil material	Epoxy resin
Port connection	G 3/4 Internal thread
Operating voltage	230 V 50 Hz
Pressure range	1...12 bar
Medium temperature	-40 °C ... +160 °C
Kv value (water)	7.0 m³/h
Degree of protection	IP65 with cable plug Type 2518

Circuit Function

Circuit function A (CF A): 2/2-way solenoid valve, servo-controlled, normally closed.

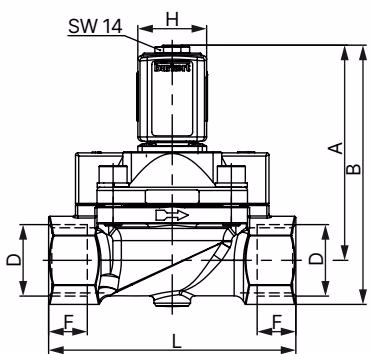

Dimensions (Steam Variant NA07)

INFO

Dimensions in mm. The dimensions D1 and F1 apply to G thread.

Coil size	DN	A	B	D1 (G thread)	F1	E	L	SW	H	J	K
5	20	96.1	112.1	G 3/4	16	60	100	32	32	20.5	45
6	20	96.1	112.1	G 3/4	16	60	100	32	40	23.5	51

Performance Specifications

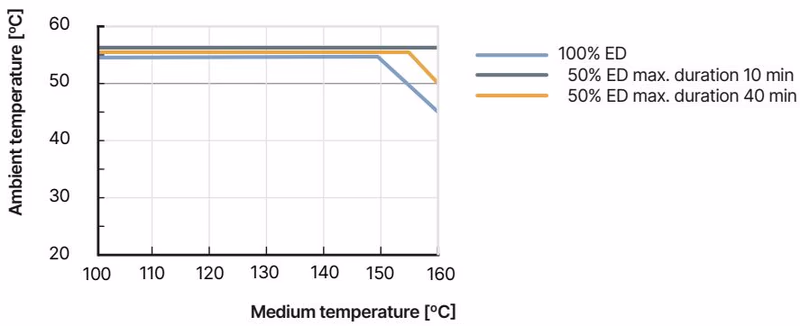

Temperature/duty cycle derating diagram for steam variant NA07

Safety Instructions

WARNING

Risk of injury due to high pressure and escaping medium Switch off the pressure before working on the device or system. Vent or drain the lines.

DANGER

Risk of injury from electric shock Switch off the power supply before working on the device or system. Secure against reactivation. Always connect protective conductor and check electrical continuity between solenoid and body.
