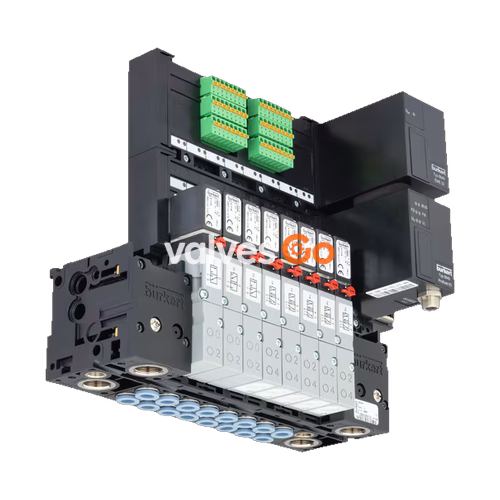

BURKERT 20143083 Type 8640 valve block. This unit features an 11.00 mm add-on dimension, mixed valve population, G 1/4 pressure port, and 3/2 valve function. It operates within a pressure range of 2.50 bar to 10.00 bar and a medium temperature range of 0.00 °C to 50.00 °C. The system utilizes a collective socket module and offers IP20 protection.

Technical Attributes

Function & Setup

Attribute	Value
Valve function	Mixed valve population
Add-on dimension 1	11 mm

Process Connection

Attribute	Value
Pressure port	G 1/4
Working port	D6
Working connection position	Bottom (pneumatic module)

Process Pressure & Temperature

Attribute	Value
Nominal pressure min	2.5 bar
Nominal pressure max	10 bar
Temperature medium min	0 °C
Temperature medium max	50 °C
Temperature environment min	0 °C
Temperature environment max	55 °C

Input / Output & Features

Attribute	Value
Input type digital quantity	0 PCE
Pressure sensor	No
Pressure sensor number	0
Manual/Automatic switching	No
Integrated check valves in 3 (R)	No
Integrated check valves in 5 (S)	No
Pneumatic HotSwap in 1 (P)	No

Properties

Attribute	Value
Type	8640
Generation	revision 3
Intermediate feed quantity	0 PCE
Mounting type	DIN-rail installation

Software, Communication & Protection

Attribute	Value
Modular version	Collective socket module
Communication interface protocol 1	Collective socket
Internal bus communication	Bürkert
Protection type IP (max. with suitable connector)	IP20
