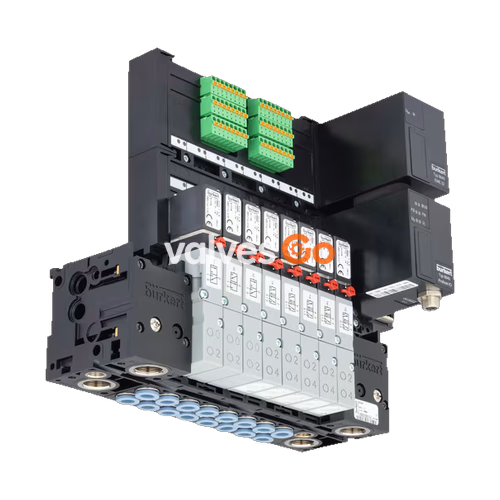

BURKERT 20081390 Type 8640 modular valve island for pneumatics is designed to solve diverse and complex control problems due to its systematic modular construction and combination of pneumatic and electrical interfaces. By putting together a row of pneumatic modules with different numbers of valves, 2 to 24 valve functionalities may be realized on one valve unit. The 20081390 configuration features an 11 mm width per station, 8x 5/2-way valve function H, a G 1/4 pressure port, and a multi-pole electrical connection.

Bodies and connection modules are made of high-quality plastic (polyamide) and are easy to assemble by means of the built-in snap connectors.

Features

• Compact design and modular configuration
• Higher flexibility in control cabinet due to AirLINE Quick
• Simple exchange of valves (with option "P-shut-off" – also possible during operation)
• Integrated check valves in 3 (R) and 5 (S)
• Pneumatic HotSwap in 1 (P)

Technical Data

Property	Value
Width per station	11 mm
Number of valve slots	24 (Max. 12 for impulse and double valves)
Body material	PA (polyamide)
Seal material	FKM, NBR and PUR
Pressure range	2.5...10 bar
Medium temperature	0 °C...+ 50 °C
Ambient temperature	0 °C...+ 55 °C
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Compressed air quality	ISO 8573-1: 2010, Class 7.4.4
Degree of protection	IP20 (IP65 in closed control cabinets)
Working port	D6
Air supply connection 1 (P), 3 (R), 5 (S)	G 1/4
Communication interface	Multi-pole (Sub D 25-pin)
Installation position	As required, preferably with actuator upright

Circuit Function

The 20081390 configuration is equipped with 8x 5/2-way valve function H.

Symbol	Description
Circuit function H (CF H)	5/2-way solenoid valve Servo-controlled, with manual override Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.

Product Connections

Module	Description
Multi-pin module Valve outputs	Max. 24 valves Degree of protection IP20 Electrical connection plug D-Sub (25-pin)

Product Design and Assembly

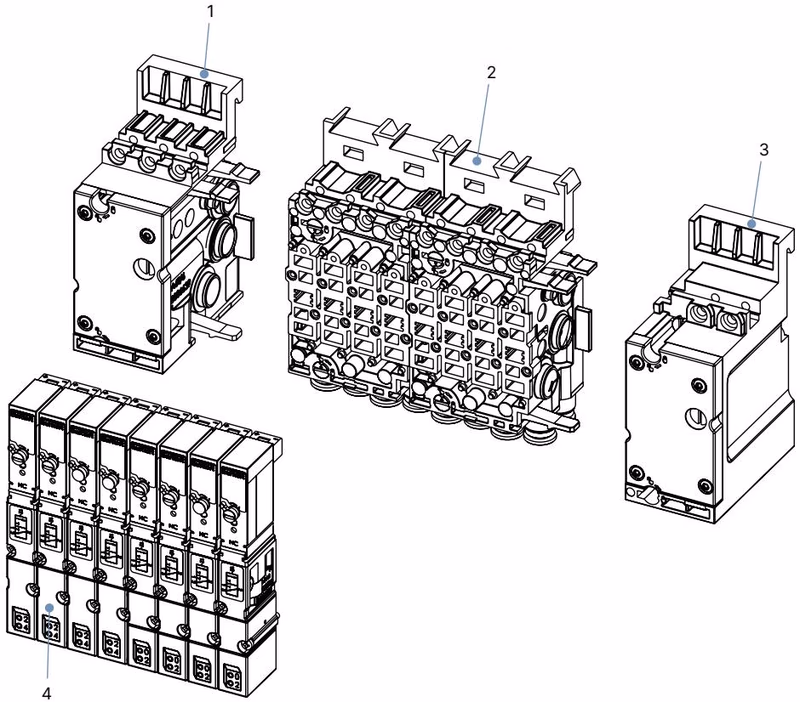

Pneumatics 11 mm width per station

No.	Element
1	Pneumatic connection module, left
2	Basic pneumatic modules
3	Pneumatic connection module, right
4	Valves (for example 5/2-way)

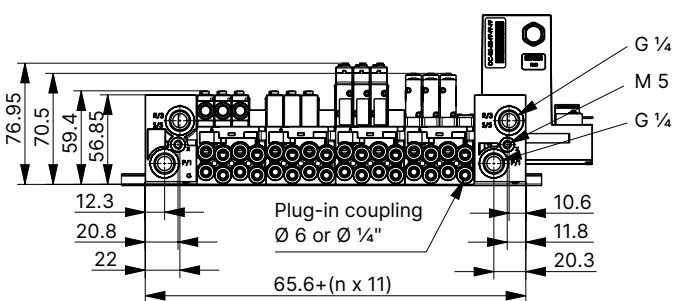

Dimensions

Pneumatics 11 mm width per station

INFO

Dimensions in mm, unless otherwise stated.

Installation

DANGER!

Risk of injury due to high pressure and escaping medium.

• Switch off the pressure before working on the device or system. Vent or drain the pipes.

Risk of injury due to electric shock.

• Switch off voltage before working on the device or system. Secure against reactivation.
• Observe any applicable accident prevention and safety regulations for electrical devices.

Valve Block Installation

Standard rail installation

• Hook the valve block with the upper groove into the standard rail (Standard rail 35 x 15 or 35 x 7.5 EN 50022).
• Snap the lower clamping pieces into the standard rail.
• Tighten the screws on the clamping pieces.

Wall installation

• Fasten the valve block directly to the wall with M4 screws.

Pneumatic Installation

Recommended action for push-in connectors

• Use suitable materials: Ensure that the appropriate combination of hose material (polyamide or polyurethane) and push-in connector is used.
• Check the hose size: Ensure that the outer diameter of the hose matches the specification of the push-in connector.
• Cut the hose correctly: Cut the hose straight. Cutting it diagonally adversely affects the holding force.
• Insert the hose correctly: Press the hose into the push-in connector with sufficient force. The hose must be inserted deep enough into the push-in connector so that it is held correctly by the claws.

Tightening torques for port connections

Port size	Marking/function	Recommended tightening torque [Nm]	Maximum tightening torque [Nm]
G1/4	P, R/S connection	4...7	20
G1/8	P, R/S connection A/B valve outlets	3...6	7
