BURKERT 20036646 (Type 6013) is a direct-acting and compact 2/2-way plunger solenoid valve. The specific 20036646 model features a stainless steel body, EPDM seal, 2.0 mm orifice, flange connection, and operates on 24V DC with a pressure range of 0 to 16 bar. It is configured for Circuit Function B (normally open). Across the Type 6013 family, the stopper and the core guide tube are welded together to increase pressure resistance and leak-tightness. A variety of seal material combinations are available to suit different applications. A Bürkert-specific flange variant (SFB) enables the space-saving arrangement of valves on a multiple manifold. Kick and drop coils are available to reduce electrical power consumption during operation.

General Technical Data

Standard Variant

Product properties	Description
Dimensions	Refer to Dimensions section
Seal	FKM, PTFE/Graphite (EPDM on request, standard on 20036646)
Body	Brass, stainless steel 1.4305/303
Coil	Polyamide, epoxy
Orifice	DN 2.0...DN 6.0
Circuit function	A (Normally closed) and B (Normally open)
Thermal insulation class	Polyamide coil class B, Epoxy coil class H
Duty cycle	100% continuous operation. Intermittent operation 60% (30 min) or with 5 W coil
Operating voltage	24 V DC, 24 V 50 Hz, 24 V 60 Hz, 120 V 50 Hz, 230 V 50 Hz, 240 V 60 Hz
Voltage tolerance	±10%
Operating medium	Technical vacuum, neutral gases and liquids (e.g. compressed air, water, hydraulic oil)
Medium temperature	With FKM: -10 °C...+100 °C (PA coil), -10 °C...+120 °C (Epoxy coil). With PTFE/Graphite: -40 °C...+180 °C. With EPDM: -30 °C...+100 °C
Viscosity	Max. 21 mm²/s
Electrical connection	Plug contacts according to DIN EN 175 301 - 803 form A for cable plug Type 2518 or 2509. ATEX/IECEx variant with 3 m moulded cable or terminal box
Port connection	G 1/8, G 1/4, G 3/8, NPT 1/8, NPT 1/4, NPT 3/8, manifold (SFB)
Degree of protection	IP65 with cable plug
Installation position	As required, preferably with actuator upright
Ambient temperature	Max. +55 °C (higher temperatures on request)

Analytical and DVGW Variants

Type 6013 is also available in an Analytical variant suitable for switching extremely pure gaseous media (tightness < 10⁻⁴ mbar l/s), and a DVGW variant intended as an automatic safety shut-off valve for fuel gases (max 0...5 bar, NBR seal).

Circuit Functions

Symbol	Description
A	Circuit function A (CF A): 2/2-way solenoid valve, Direct-acting, Normally closed
B	Circuit function B (CF B): 2/2-way solenoid valve, Direct-acting, Normally open (Model 20036646)

Approvals and Conformities

• Explosion Protection: Optional explosion protection according to category 2 (zone 1/21) or category 3 (zone 2/22) with ATEX and IECEx certifications.
• North America (USA/Canada): Optional UL Listed (UL 429), UL Recognized, CSA (CSA 139), and FM (Factory Mutual) for Hazardous Locations.
• Drinking Water: Suitable for use in drinking water applications. PA body (PF36) up to +60 °C; PPS/brass/stainless steel body (PF39) up to +85 °C.
• Foods and Beverages/Hygiene: FDA Code of Federal Regulations, USP (United States Pharmacopeial Convention), and EC Regulation 1935/2004 compliance available.
• Fuel Gases: CE Regulation (EU) 2016/426 and DVGW DIN EN 161. Optional DIN EN 549:2023-07 certification.

Materials

Standard Variant

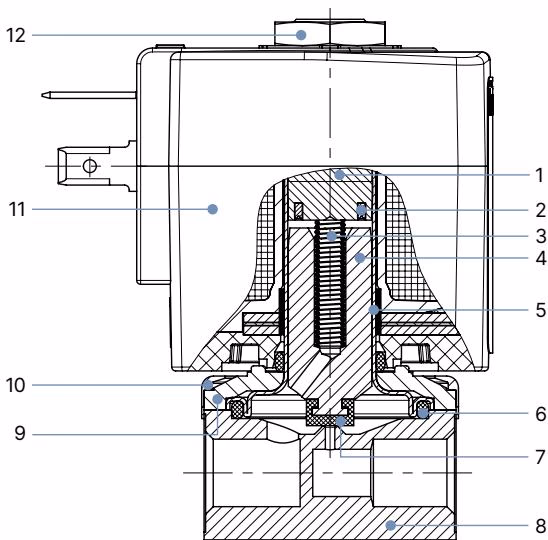

No.	Element	Material
1	Stopper	Stainless steel 1.4105/430F
2	Shading ring	Cu (brass variant), Ag (stainless steel variant)
3	Spring	Stainless steel 1.4310/301
4	Magnetic core	Stainless steel 1.4105/430F
5	Core guide tube	Stainless steel 1.4303/305/308
6	Seal	FKM, Graphite (high temperature variant), EPDM (on 20036646)
7	Armature seal	FKM, PTFE
8	Valve body	Brass, Stainless steel 1.4305/303
9	Sub-base	Steel, surface finish thick-film passivated (brass variant), Stainless steel 1.4301/304 (stainless steel variant)
10	Cover	Polyamide
11	Coil	PA (polyamide), Epoxy
12	Nut	Steel, surface finish thick-film passivated (brass variant), Stainless steel 1.4305/303 PTFE coated (stainless steel variant)

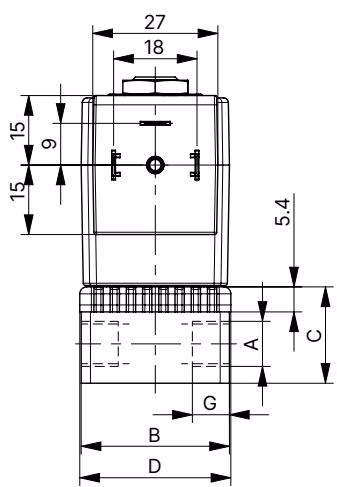

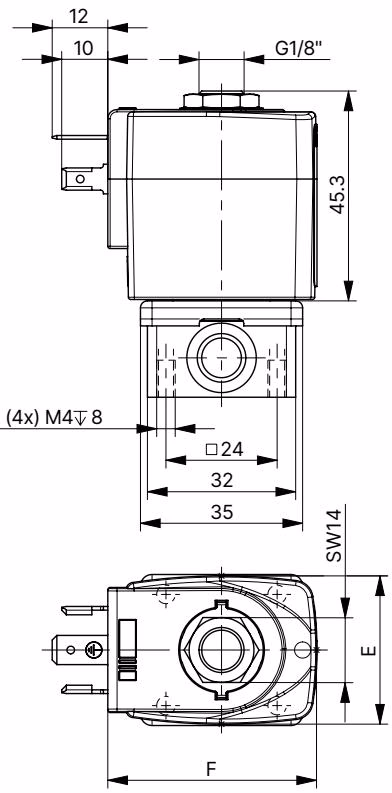

Dimensions

Standard Variant

Port connection	A [inch]	B [mm]	C [mm]	D [mm]	G [mm]
Thread	G/NPT 1/8	32	20.8	32.6	8
Thread	G/NPT 1/4	46	26.8	49	12
Thread	G/NPT 3/8	50	39.8	38	12
Flange	-	32	14.3	32.6	-

Coil size	E [mm]	F [mm]
5	32	45
6	40	51

Performance Specifications

Power Consumption - Circuit Function B

Orifice [mm]	Power consumption	Inrush AC [VA]	Hold AC [VA]	Opening [ms]	Closing [ms]
2.00	7 W AC or 8 W DC (9)	24	17	20	30
3.00	7 W AC or 8 W DC (9)	24	17	20	30
4.00	7 W AC or 8 W DC (9)	24	17	20	30
6.00	7 W AC or 8 W DC (9)	24	17	20	30

(Values in brackets correspond to a coil temperature of +20 °C)

Installation Notes

Control for impulse variant with polarity reversal control

TIP

• Use cable plug without electrical wiring exclusively for impulse variant.
• Pulse duration min. 50 ms

Polarity (marked on coil)	Features	Terminal connections
- switch ON +	valve open	(+) on terminal 2 and (-) on terminal 1
+ switch OFF -	valve closed	(+) on terminal 1 and (-) on terminal 2
