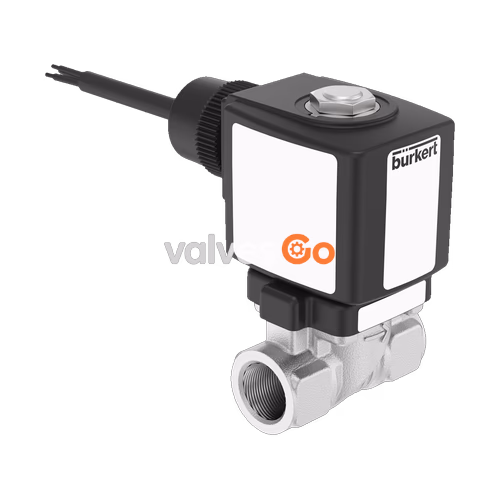

BURKERT Type 6213 (SKU 20009797) is a servo-assisted 2/2-way diaphragm valve. The spring coupling of the diaphragm supports the opening process in the valve. A minimum differential pressure is required for full opening. This specific model features a stainless steel body, EPDM seal, and ATEX/IECEx explosion protection with a 3-meter molded cable, making it suitable for demanding industrial environments.
Features
- Servo-assisted diaphragm valve with a nominal diameter of DN 10
- Spring coupled diaphragm supports the opening process
- Damped design for low noise operation
- High flow rate with a compact design
- Explosion-proof ATEX/IECEx variant with molded cable
Technical Data
| Property | Specification |
|---|---|
| Orifice | 10.00 mm (3/8 inch) |
| Port Connection | NPT 3/8 Internal thread |
| Operating Pressure | 0.5 - 10 bar (PN 10) |
| Kv value (water) | 1.9 m³/h |
| Voltage | 230 V (50/60 Hz) |
| Body Material | Stainless steel (1.4408) |
| Seal Material | EPDM |
| Medium Temperature | -30 °C to +90 °C |
| Ambient Temperature | -30 °C to +55 °C |
| Electrical Connection | Wire cable (3000 mm) |
| Degree of Protection | IP65 / NEMA 4X |
Circuit Function
Circuit function A (CF A): 2/2-way solenoid valve, servo-controlled, normally closed.
Explosion Protection (ATEX/IECEx)
This variant is equipped with explosion protection according to category 2 (zone 1/21). The Ex marking of the components is as follows:
- ATEX: EPS 18 ATEX 1232 X; II 2G Ex mb IIC T4 Gb; II 2D Ex mb IIIC T130 °C Db
- IECEx: IECEx EPS 18.0110 X; Ex mb IIC T4 Gb; Ex mb IIIC T130 °C Db

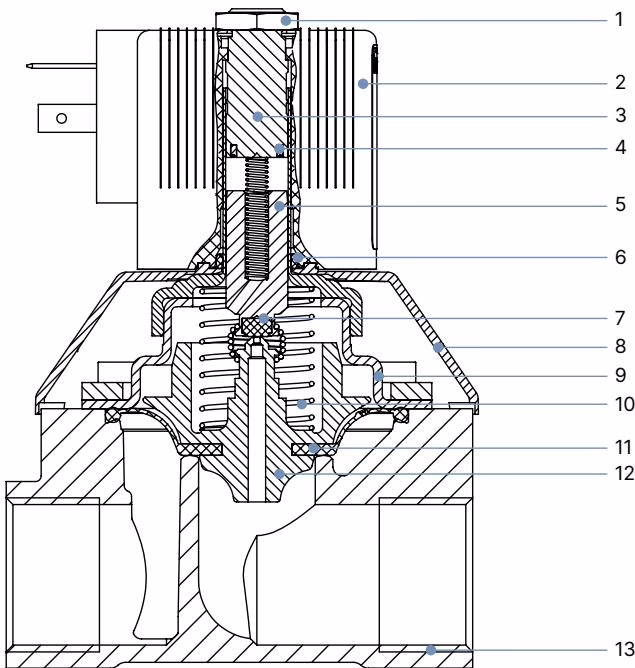

Materials
| No. | Element | Material |
|---|---|---|
| 1 | Nut | Stainless steel 1.4305, PTFE-coated |
| 2 | Coil | Epoxy (insulation class H) |
| 3 | Stopper | Stainless steel 1.4113 |
| 4 | Shading ring | Silver (Ag) (for stainless steel body) |
| 5 | Magnetic core | Stainless steel 1.4113 |
| 6 | O-ring | FKM |
| 7 | Plunger seal | EPDM |
| 8 | Bonnet | PA6 |
| 9 | Cover | Stainless steel 1.4301 |
| 10 | Spring | Stainless steel 1.4310 |
| 11 | Diaphragm | EPDM |
| 12 | Diaphragm support | PPSGF40 in combination with stainless steel parts |
| 13 | Valve body | Stainless steel 1.4408 |

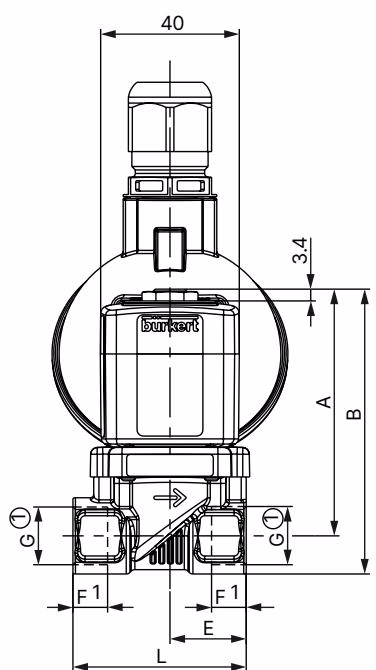

Dimensions
Dimensions for DN10, NPT 3/8 (ATEX variant):
- A: 71.2 mm
- B: 82.2 mm
- C: 36 mm
- D: 45.6 mm
- E: 22 mm
- F2: 10.3 mm
- G2: NPT 3/8
- L: 50 mm
- SW: 22 mm
Installation and Safety
Risk of injury from high pressure
Before loosening lines or valves, switch off the pressure and vent the lines.
Risk of injury from electric shock
Before reaching into the device or the system, switch off the power supply and secure it against reactivation. Observe the applicable accident prevention and safety regulations for electrical devices.
Risk of injury due to improper installation
Installation must be carried out by authorised technicians only and with the appropriate tools. Secure the system against unintentional activation and ensure a controlled restart after installation.
Installation Approach:
- Clean pipelines of any contamination.
- Install a dirt trap upstream of the valve inlet (≤ 500 µm).
- Do not use the solenoid as a lever arm.
- Hold the device on the body using an open-end wrench and screw into the pipeline.
- Observe the flow direction: the arrow on the body indicates the flow direction.
